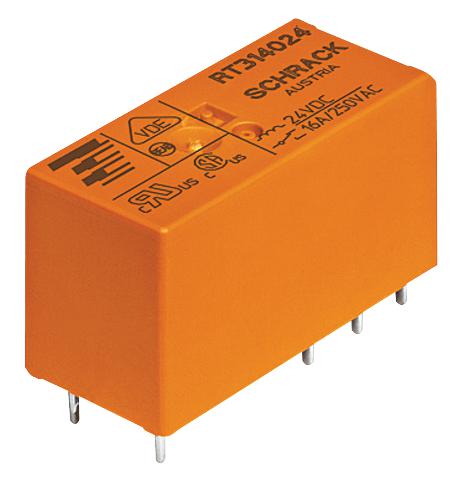

SCHRACK - TE CONNECTIVITY - 8-1393239-5 - General Purpose Relay, RT1 bistable Series, Power, Latching Dual Coil, SPDT, 5 VDC, 16 A
- Contact Configuration: SPDT
- Coil Voltage: 5VDC
- Contact Current: 16A
- Product Range: RT1 bistable Series
- Relay Mounting: Through Hole
- Coil Type: Latching Dual Coil
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 42ohm
- SVHC: No SVHC (15-Jan-2019)
- Coil Voltage VDC Nom: 5V
- Contact Current Max: 16A
- Contact Voltage AC Nom: 250V
- External Depth: 29mm
- External Height: 15.7mm
- External Width: 12.7mm
- Nom Operating Power: 595mW
- Relay Type: Power
