8-1393480-1 Socket, D, R/A, 9WAY, 4-40UNC Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :8-1393480-1 Code de commande:1187817

Prix:
Prix ​​promotionnel€10,52

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (97 unité)

Documents et téléchargements

description

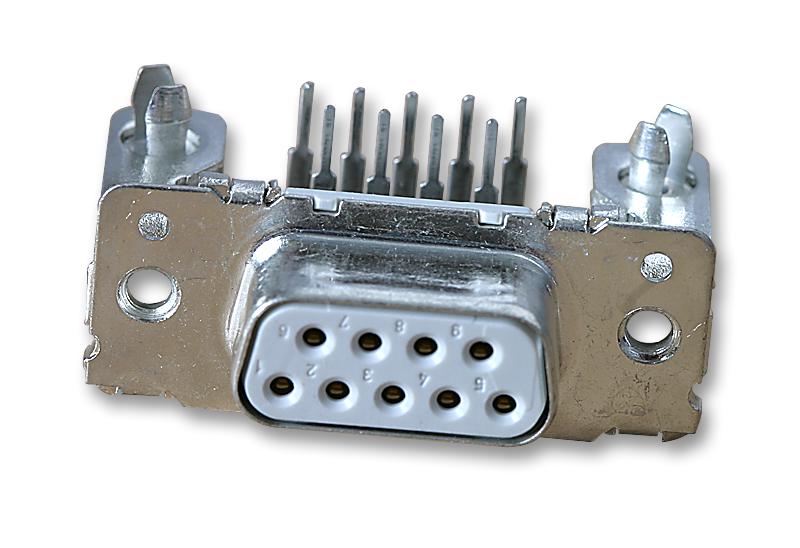

AMP - TE CONNECTIVITY - 8-1393480-1 - D Sub Connector, DB9, Standard, Receptacle, AMPLIMITE HDP-20, 9 Contacts, DE, Solder

  • No. of Contacts: 9Contacts
  • Gender: Receptacle
  • Contact Termination Type: Solder
  • D Sub Shell Size: DE
  • Product Range: AMPLIMITE HDP-20 Series
  • Connector Body Material: Steel Body
  • Contact Material: Copper Alloy
  • Contact Plating: Gold Plated Contacts
  • SVHC: Lead (15-Jan-2019)
  • Body Plating: Tin
  • Colour: Black
  • Connector Mounting: Through Hole Mount Right Angle
  • Contact Termination: Solder
  • D Sub Connector Type: Standard
  • DC Current Max: 2.2A
  • Dielectric Strength VDC: 1000V
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 5000Mohm
  • Material: Steel
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: 55°C
  • Termination Method: Through Hole
