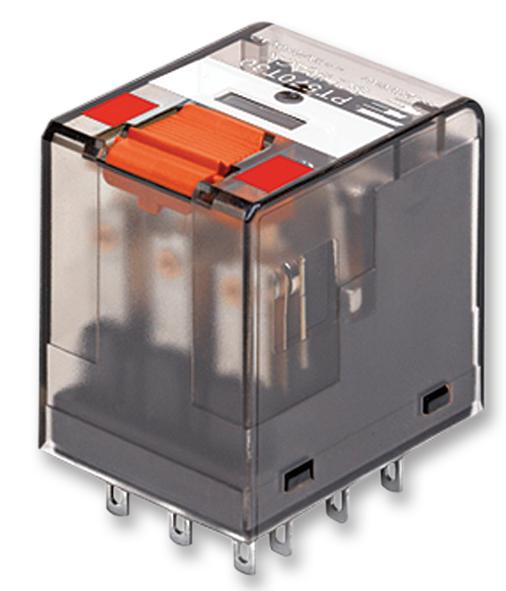

SCHRACK - TE CONNECTIVITY - 8-1419111-4 - General Purpose Relay, PT Series, Power, Non Latching, 4PDT, 220 VDC, 6 A
- Contact Configuration: 4PDT
- Coil Voltage: 220VDC
- Contact Current: 6A
- Product Range: PT Series
- Relay Mounting: Socket
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 64.533kohm
- SVHC: No SVHC (27-Jun-2018)
- Coil Voltage VDC Nom: 220V
- Contact Current Max: 6A
- Contact Voltage AC Nom: 240V
- External Depth: 28mm
- External Height: 29mm
- External Width: 22.5mm
- Nom Operating Power: 750mW
- Relay Type: Power
