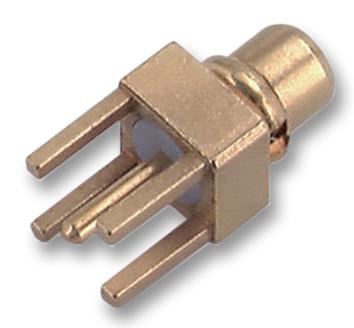

HUBER+SUHNER - 81"MMCX-50-0-1/111"OE - RF / Coaxial Connector, MMCX Coaxial, Straight Plug, Through Hole Vertical, 50 ohm
- Connector Type: MMCX Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Through Hole Vertical
- Impedance: 50ohm
- Coaxial Cable Types: -
- Contact Material: Beryllium Copper
- Contact Plating: Gold Plated Contacts
- Frequency Max: 6GHz
- Connector Mounting: PCB Mount
- Product Range: -
- SVHC: No SVHC (17-Dec-2015)
- Body Plating: Gold
- Centre Contact Resistance: 15mohm
- Connector Mounting Orientation: PCB
- Dielectric Material: PTFE
- Insulation Resistance: 1000Mohm
- Material: Brass
- Operating Frequency Max: 6GHz
- Outer Contact Resistance: 7.5mohm
- Termination Method: Solder
- VSWR: 1.10
