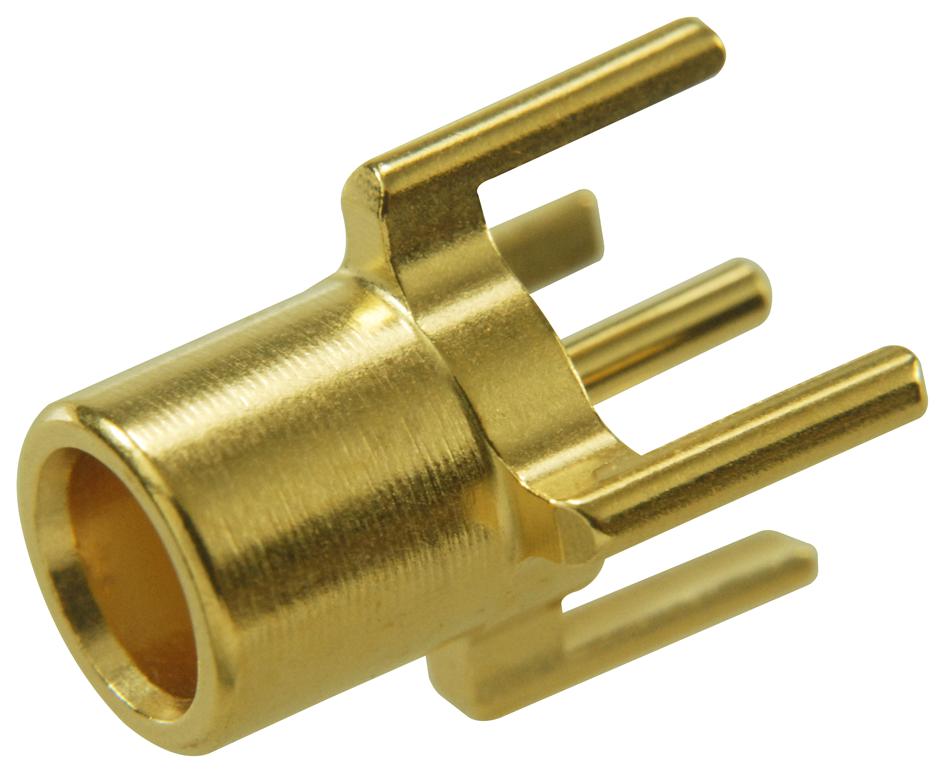

82 MCX-50-0-17/111NH RF Coaxial, MCX, Straight Jack, 50ohm Huber+SUHNER

HUBER+SUHNERUGS :82 MCX-50-0-17/111NH Code de commande:4163394

Prix:
Prix ​​promotionnel€8,00

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3989 unité)

Documents et téléchargements

description

  • Connector Type: MCX Coaxial
  • Connector Body Style: Straight Jack
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: -
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 6GHz
  • Connector Mounting: PCB Mount
  • Product Range: -
  • SVHC: No SVHC (17-Dec-2015)
  • Body Plating: Gold
  • Centre Contact Resistance: 5mohm
  • Connector Mounting Orientation: PC Board
  • Contact Resistance: 1mohm
  • Dielectric Material: PTFE
  • Insulation Resistance: 100000Mohm
  • Material: Brass
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 6GHz
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Termination Method: Solder
  • Withstand Voltage: 750V
  • Working Voltage: 170V
