description

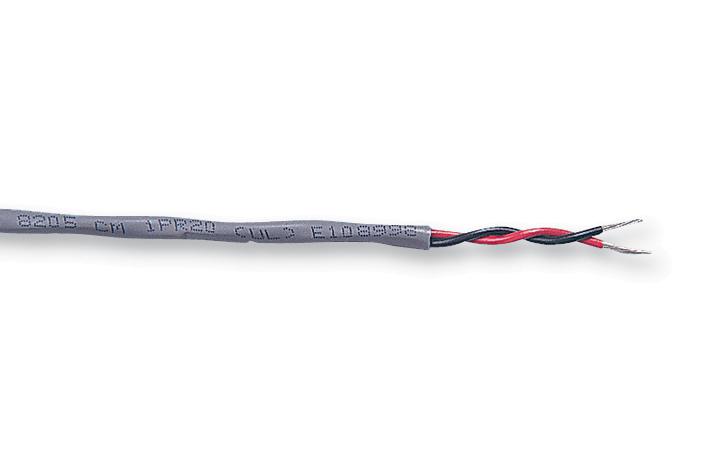

BELDEN - 8205 060U1000 - Multipair Cable, Audio Control, Unscreened, 1 Pair, 20 AWG, 0.519 mm², 1000 ft, 305 m
- Cable Shielding: Unscreened
- No. of Pairs: 1 Pair
- Wire Gauge: 20AWG
- Conductor Area CSA: 0.519mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 305m
- Jacket Colour: Chrome
- No. of Max Strands x Strand Size: 7 x 0.32mm
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 5.1mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Alpha Type Number: 1895C EQUIVALENT
- Belden Type Number: 8205
- Cable Type: Shielded
- Complex Cable Make-Up: 2 x 7/28
- Conductor Make-up: 7 / 28AWG
- Current Rating: 3.7A
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Outer Diameter: 5.1mm
- Secondary Insulation Colour: Chrome
- Secondary Insulation Material: PVC
- Wire Size: 20AWG
