8205 Cable, 8205, 1Pair, Per M Belden

BELDENUGS :8205 Code de commande:1218668

Prix:
Prix ​​promotionnel€4,11

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (178 unité)

Documents et téléchargements

description

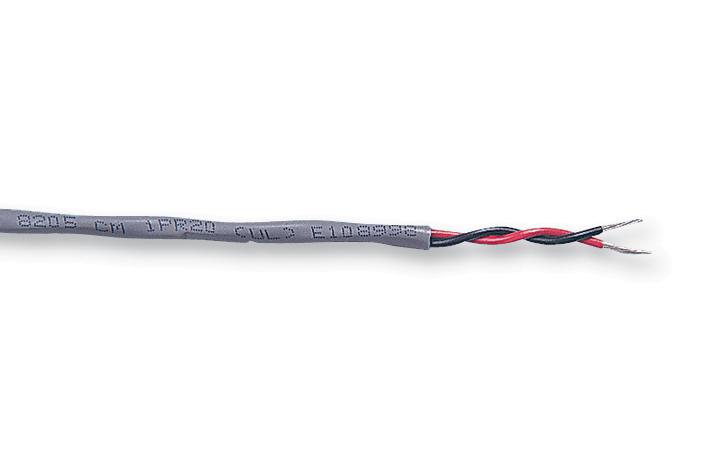

BELDEN - 8205 - Multipair Cable, Speaker, High Conductivity, Per M, Unscreened, 1 Pair, 20 AWG, 0.519 mm²

  • Cable Shielding: Unscreened
  • No. of Pairs: 1 Pair
  • Wire Gauge: 20AWG
  • Conductor Area CSA: 0.519mm²
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Chrome
  • No. of Max Strands x Strand Size: 7 x 0.32mm
  • Voltage Rating: 300V
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • External Diameter: 5.1mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Alpha Type Number: 1895C EQUIVALENT
  • Belden Type Number: 8205
  • Cable Type: Unshielded
  • Complex Cable Make-Up: 2 x 7/28
  • Conductor Make-up: 7 / 28AWG
  • Current Rating: 3.7A
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -20°C
  • Outer Diameter: 5.1mm
  • Secondary Insulation Colour: Chrome
  • Secondary Insulation Material: PVC
  • Wire Size: 20AWG
