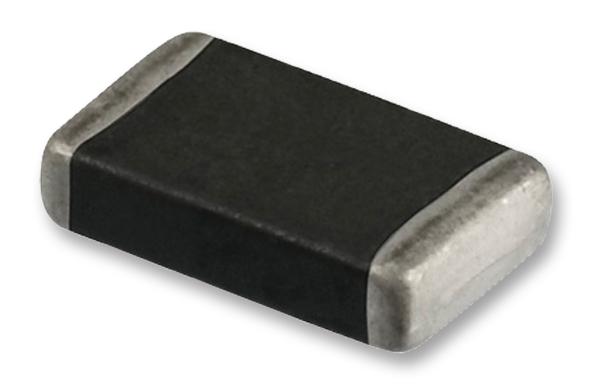

WURTH ELEKTRONIK - 82551140 - TVS Varistor, 14 V, 18 V, WE-VS, 38 V, 1206 [3216 Metric], Multilayer Varistor (MLV)
- Voltage Rating VAC: 14V
- Voltage Rating V DC: 18V
- Product Range: WE-VS Series
- Clamping Voltage Vc Max: 38V
- Varistor Case Style: 1206 [3216 Metric]
- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 100A
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 300mJ
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance: 900pF
- Clamping Voltage: 38V
- Clamping Voltage @ 8/20µs Max: 40V
- Operating Temperature Range: -40°C to +85°C
- Peak Pulse Current IPP @ 8/20µs: 100A
- Suppressor Type: Varistor
- Surge Current: 100A
