8314 Fan, 80mm, 24Vdc ebm-papst

EBM-PAPSTUGS :8314 Code de commande:9599835

Prix:
Prix ​​promotionnel€81,29

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (327 unité)

Documents et téléchargements

description

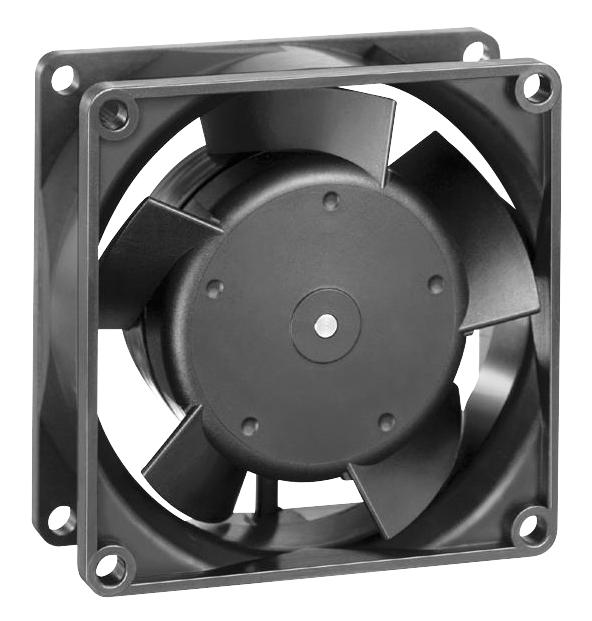

EBM-PAPST - 8314 - DC Axial Fan, 24 V, Square, 80 mm, 32 mm, Ball Bearing, 31.8 CFM

  • Supply Voltage: 24V
  • Current Type: DC
  • Fan Frame Size: 80mm
  • External Depth: 32mm
  • Noise Rating: 36dBA
  • Flow Rate - Imperial: 31.8cu.ft/min
  • Flow Rate - Metric: 54m³/h
  • Bearing Type: Ball
  • Power Connection Type: 2 Lead Wires
  • Current Rating: 113mA
  • Product Range: 8300 Series
  • Power Rating: 2.5W
  • IP Rating: IP54, IP68
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, UL
  • External Height: 80mm
  • External Width: 80mm
  • Fixing Centres: 71.5mm
  • Fixing Hole Diameter: 4.5mm
  • Frame Dimensions: 80mm x 80mm x 32mm
  • Input Voltage Max: 31.5V
  • Input Voltage Min: 12V
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -20°C
  • Operating life Time: 70000h
  • Panel Cutout Diameter: 77mm
  • Power Consumption: 2.7W
  • Standard: VDE0730
  • Supply Voltage DC Max: 31.5V
  • Supply Voltage DC Min: 12V
  • Type: Standard,80mm
