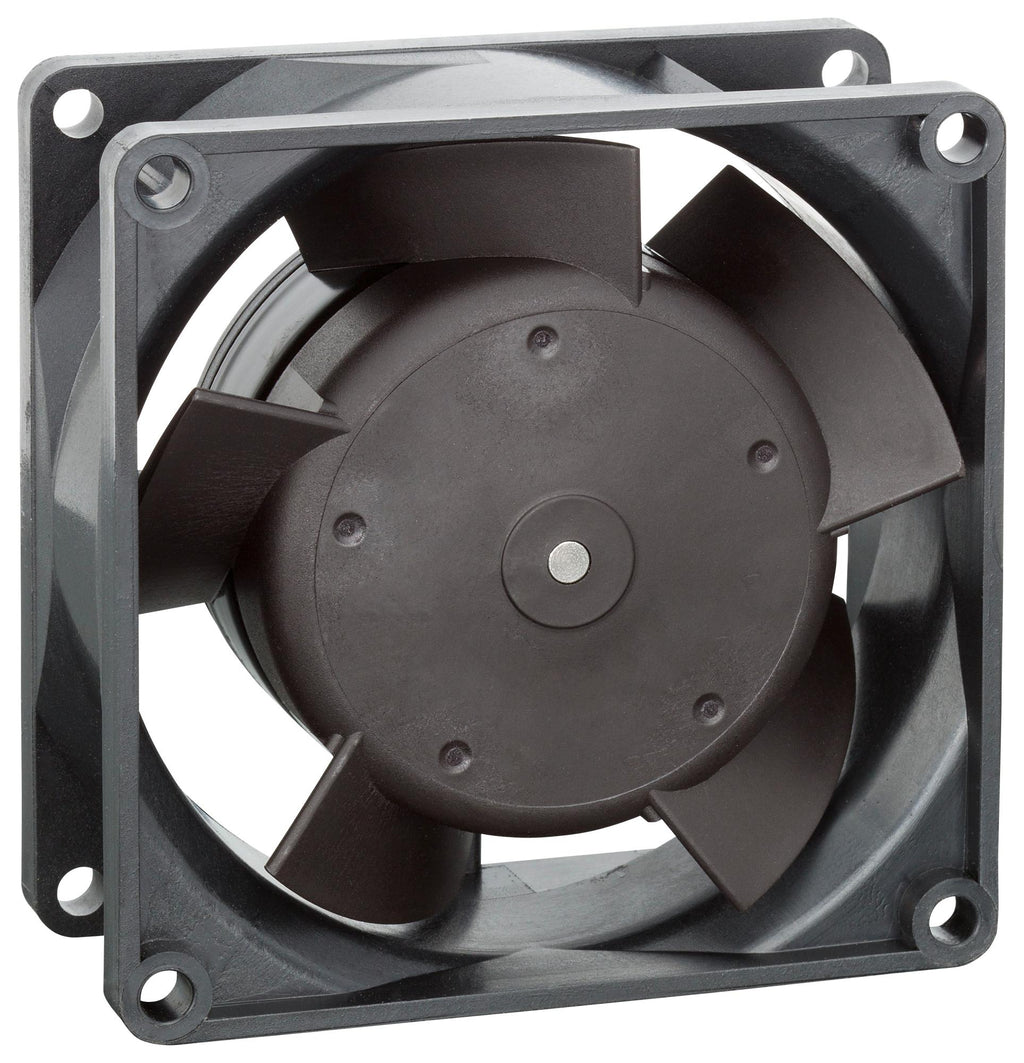

EBM-PAPST - 8314L - DC Axial Fan, 24 V, Square, 80 mm, 32 mm, Ball Bearing, 18.8 CFM
- Supply Voltage: 24V
- Current Type: DC
- Fan Frame Size: 80mm
- External Depth: 32mm
- Noise Rating: 24dBA
- Flow Rate - Imperial: 18.8cu.ft/min
- Flow Rate - Metric: 32m³/h
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: -
- Product Range: 8300 Series
- Power Rating: -
- IP Rating: IP54, IP68
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL
- External Height: 80mm
- External Width: 80mm
- Fixing Centres: 71.5mm
- Fixing Hole Diameter: 4.5mm
- Frame Dimensions: 80mm x 80mm x 32mm
- Input Voltage Max: 31.5V
- Input Voltage Min: 12V
- Operating Temperature Max: 75°C
- Operating Temperature Min: -20°C
- Operating life Time: 80000h
- Panel Cutout Diameter: 77mm
- Power Consumption: 1W
- Standard: VDE0730
- Supply Voltage DC Max: 31.5V
- Supply Voltage DC Min: 12V
- Type: Super Low Noise, 80mm
