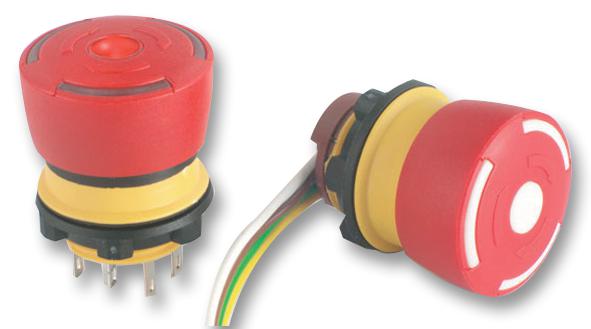

EAO - 84-5031.2B20 - Emergency Stop Switch, SPST-1NO / 1NC, On-Off, Quick Connect, Solder, 3 A, 240 V, 250 V
- Contact Configuration: SPST-1NO / 1NC
- Switch Operation: On-Off
- Switch Terminals: Quick Connect, Solder
- Contact Current Max: 3A
- Contact Voltage AC Nom: 240V
- Contact Voltage DC Nom: 250V
- Pushbutton Actuator Style: Mushroom
- IP Rating: IP65
- Product Range: 84 Series
- SVHC: No SVHC (15-Jan-2018)
- Actuator / Cap Colour: Red
- Actuator Diameter: 32mm
- Actuator Type: Mushroom Head
- Approval Bodies: DIN, EN
- Colour: Red illumination, black indicator ring
- Contact Current @ Contact Voltage AC Max: 3A
- Contact Current @ Contact Voltage DC Max: 0.22A
- Contact Current AC Max: 3A
- Contact Current DC Max: 0.22A
- Contact Voltage AC Max: 120V
- Contact Voltage DC Max: 120V
- External Diameter: 32mm
- External Length / Height: 44mm
- IP / NEMA Rating: IP65
- No. of Electrical Operations: 50000
- No. of Mechanical Operations: 50000
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Panel Cutout Diameter: 22.5mm
