8412N/2GH Fan, 80mm, 12VDC ebm-papst

EBM-PAPSTUGS :8412N/2GH Code de commande:9600019

Prix:
Prix ​​promotionnel€35,91

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (156 unité)

Documents et téléchargements

description

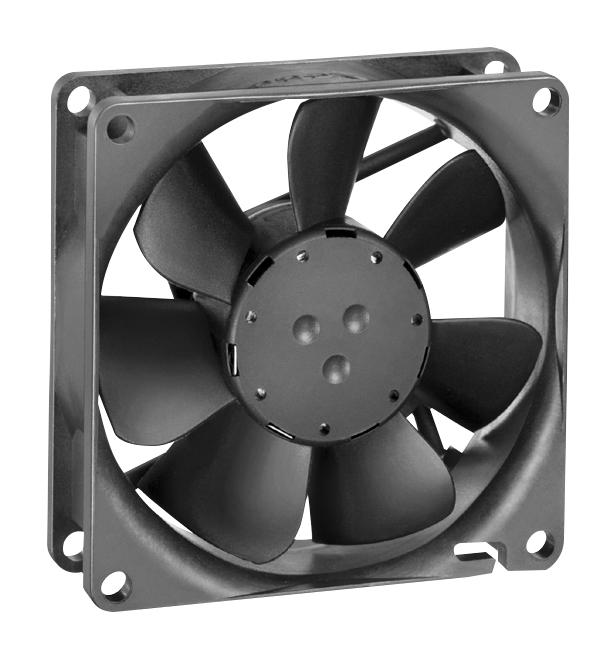

EBM-PAPST - 8412N/2GH - DC Axial Fan, 12 V, Square, 80 mm, 25 mm, Sleeve Bearing, 46.5 CFM

  • Supply Voltage: 12V
  • Current Type: DC
  • Fan Frame Size: 80mm
  • External Depth: 25mm
  • Noise Rating: 37dBA
  • Flow Rate - Imperial: 46.5cu.ft/min
  • Flow Rate - Metric: 79m³/h
  • Bearing Type: Sleeve
  • Power Connection Type: 3 Lead Wires, Sensor Output
  • Current Rating: -
  • Product Range: 8400N Series
  • Power Rating: -
  • IP Rating: IP54, IP68
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, UL, VDE
  • External Height: 80mm
  • External Width: 80mm
  • Fixing Centres: 71.5mm
  • Fixing Hole Diameter: 4.5mm
  • Frame Dimensions: 80mm x 80mm x 25mm
  • Input Voltage Max: 15V
  • Input Voltage Min: 7V
  • Lead Length: 310mm
  • Panel Cutout Diameter: 77mm
  • Power Consumption: 2.8W
  • Supply Voltage DC Max: 15V
  • Supply Voltage DC Min: 7V
  • Type: Standard,80mm
