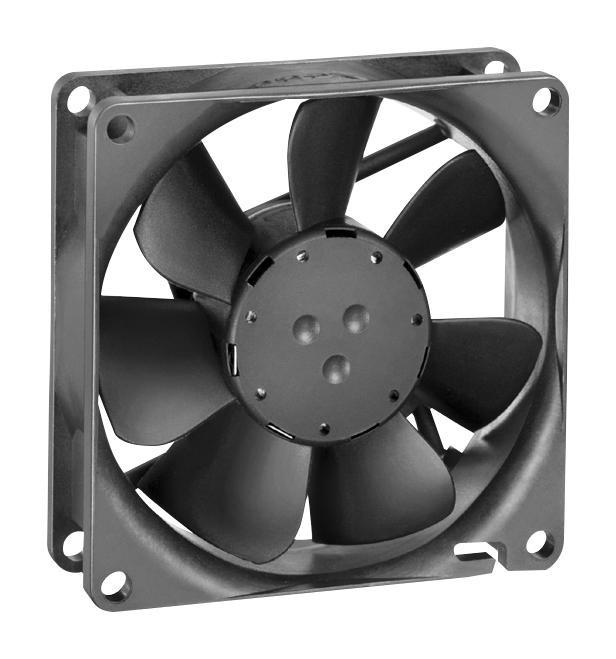

EBM-PAPST - 8412N/2GLE - DC Axial Fan, 12 V, Square, 80 mm, 25 mm, Sleeve Bearing, 19.4 CFM
- Supply Voltage: 12V
- Current Type: DC
- Fan Frame Size: 80mm
- External Depth: 25mm
- Noise Rating: 12dBA
- Flow Rate - Imperial: 19.4cu.ft/min
- Flow Rate - Metric: 33m³/h
- Bearing Type: Sleeve
- Power Connection Type: 3 Lead Wires, Sensor Output
- Current Rating: -
- Product Range: 8400N Series
- Power Rating: -
- IP Rating: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL, VDE
- External Height: 80mm
- External Width: 80mm
- Fixing Centres: 71.5mm
- Fixing Hole Diameter: 4.5mm
- Frame Dimensions: 80mm x 80mm x 25mm
- Input Voltage Max: 15V
- Input Voltage Min: 8V
- Lead Length: 310mm
- Panel Cutout Diameter: 77mm
- Power Consumption: 0.6W
- Supply Voltage DC Max: 15V
- Supply Voltage DC Min: 8V
- Type: Super Low Noise,80mm
