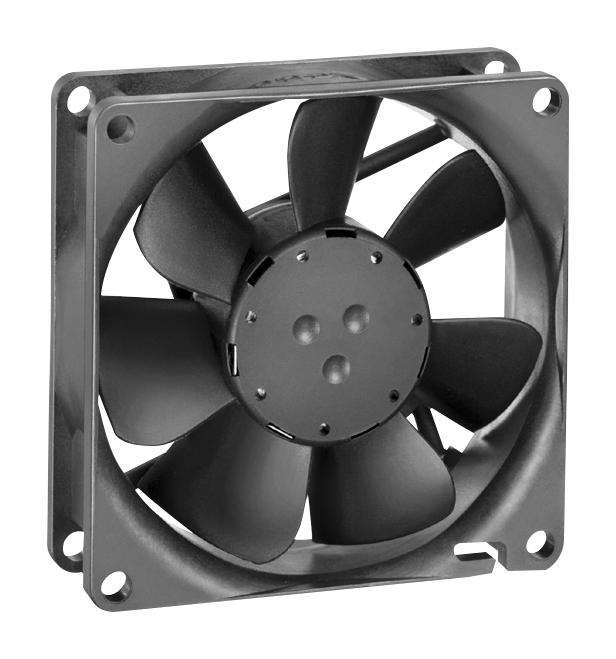

8412NGMLV Fan, V-Speed, 80mm, 12VDC ebm-papst

EBM-PAPSTUGS :8412NGMLV Code de commande:9600264

Prix:
Prix ​​promotionnel€61,45

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (47 unité)

Documents et téléchargements

description

EBM-PAPST - 8412NGMLV - DC Axial Fan, 12 V, Square, 80 mm, 25 mm, Sleeve Bearing, 26.5 CFM

  • Supply Voltage: 12V
  • Current Type: DC
  • Fan Frame Size: 80mm
  • External Depth: 25mm
  • Noise Rating: 19dBA
  • Flow Rate - Imperial: 26.5cu.ft/min
  • Flow Rate - Metric: 45m³/h
  • Bearing Type: Sleeve
  • Power Connection Type: 2 Lead Wires
  • Current Rating: -
  • Product Range: 8400N Series
  • Power Rating: -
  • IP Rating: IP54, IP68
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: VDE
  • External Height: 80mm
  • External Width: 80mm
  • Frame Dimensions: 80mm x 80mm x 25mm
  • Lead Length: 310mm
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -20°C
  • Operating life Time: 27500h
  • Panel Cutout Diameter: 77mm
  • Power Consumption: 1.5W
  • Resistance @ Tripping Temp: 30ohm
  • Supply Voltage DC Max: 14V
  • Supply Voltage DC Min: 8V
  • Tripping Temperature: 50°C
  • Type: Slim,80mm
