8444 060U500 Cable, 8444, 4CORE, 153M Belden

BELDENUGS :8444 060U500 Code de commande:1182086

Prix:
Prix ​​promotionnel€309,17

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seul 1 produit disponible

Documents et téléchargements

description

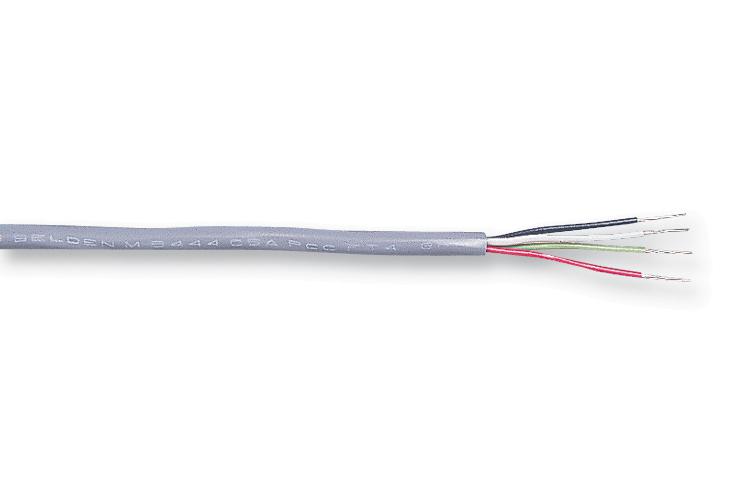

BELDEN - 8444 060U500 - Multicore Cable, Audio Control, Unscreened, 4 Core, 22 AWG, 0.325 mm², 498.69 ft, 152.4 m

  • Cable Shielding: Unscreened
  • No. of Cores: 4Core
  • Wire Gauge: 22AWG
  • Conductor Area CSA: 0.325mm²
  • Reel Length (Imperial): 498.69ft
  • Reel Length (Metric): 152.4m
  • Jacket Colour: Grey
  • No. of Max Strands x Strand Size: 7 x 0.255mm
  • Conductor Material: Tinned Copper
  • Jacket Material: PVC
  • External Diameter: 4.699mm
  • Voltage Rating: 300V
  • Product Range: 8444 Series
  • SVHC: No SVHC (15-Jan-2018)
  • Alpha Type Number: 1174C EQUIVALENT
  • Belden Type Number: 8444
  • Cable Type: Unshielded
  • Conductor Make-up: 7 / 30AWG
  • Current Rating: 2.4A
  • Outer Diameter: 4.7mm
  • Secondary Insulation Colour: Grey
  • Secondary Insulation Material: PVC
  • Wire Size: 22AWG
