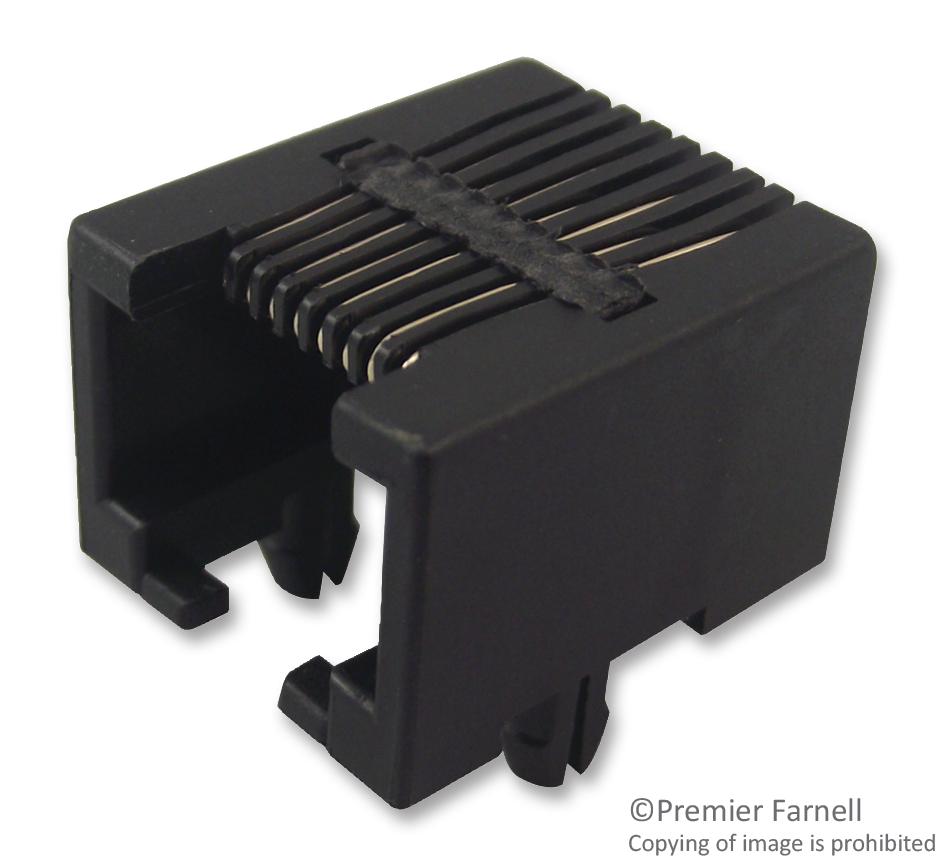

MOLEX - 85502-5006 - Modular Connector, Modular Jack, 1 x 1 (Port), 6P4C, Cat3, Surface Mount
- Modular Connector Type: Modular Jack
- Port Configuration: 1 x 1 Port
- No. of Positions / Loaded Contacts (per Port): 6P4C
- LAN Category: Cat3
- IP Rating: -
- Connector Mounting: Surface Mount
- Connector Orientation: Right Angle
- Shielding: Unshielded
- Magnetics: Without Magnetics
- LEDs: Without LED
- Light Pipes: Without Light Pipe
- Product Range: 85502 Series
- SVHC: No SVHC (15-Jan-2019)
- Approval Category: UL 94V-0
- Body Plating: Gold
- Colour: Black
- Connector Type: RJ11
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 20mohm
- Contact Termination: Surface Mount Right Angle
- Contact Termination Type: Surface Mount
- Current Rating: 1.5A
- External Depth: 11.5mm
- External Length / Height: 11.5mm
- External Width: 15.24mm
- Flammability Rating: UL94V-0
- Gender: Jack
- Insulation Resistance: 500Mohm
- Material: Polyamide 4/6
- No. of Contacts: 4Contacts
- No. of Ports: 1Ports
- No. of Positions: 6Ways
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
