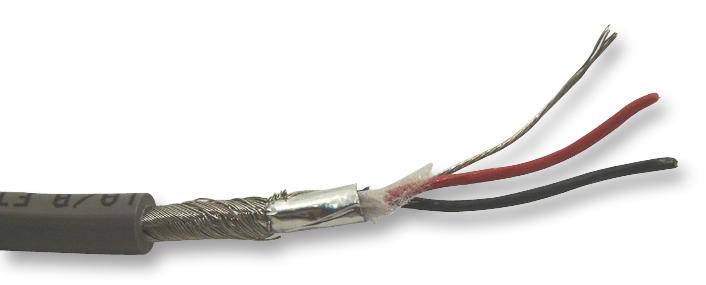

ALPHA WIRE - 86003CY SL005 - Multicore Cable, Xtra Guard® Flex Data, Screened, 3 Core, 28 AWG, 0.9 mm², 100 ft, 30.5 m
- Cable Shielding: Screened
- No. of Cores: 3Core
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.9mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 7 x 0.13mm
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- External Diameter: 4.6mm
- Voltage Rating: 300V
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Bend Flexing Radius Min: 8 X Cable Diameter
- Cable Type: Foil + Spiral Shield
- Conductor Make-up: 7 / 0.13mm
- Operating Temperature Max: 105°C
- Operating Temperature Min: 5°C
- Outer Diameter: 4.6mm
- Primary Insulation Thickness: 0.25mm
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Secondary Insulation Thickness: 1mm
- Voltage Rating VAC: 300V
- Wire Size: 28AWG
