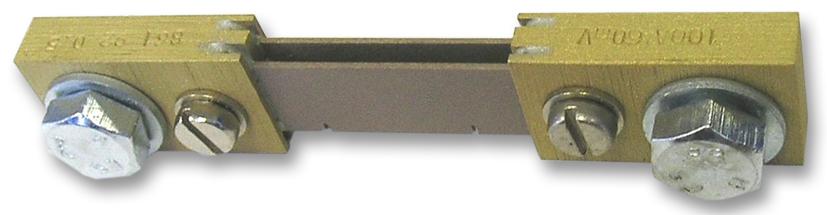

CROMPTON - TE CONNECTIVITY - 861-92MG-PKEF - Current Shunt, DIN 43703, 60mV, 100 A, 0.5 %, -20 °C, 60 °C, 860 Series
- Current Rating: 100A
- Accuracy %: 0.5%
- Operating Temperature Min: -20°C
- Operating Temperature Max: 60°C
- Product Range: 860 Series
- Approval Category: DIN 43703 (Dimensions), DIN 43780 (Performance)
- Class: 0.5
- External Depth: 30mm
- External Length / Height: 15mm
- External Width: 135mm
- Fixing Centres: 115mm
- Full Power Rating Temperature: 20°C
- Operating Temperature Range: -20°C to +60°C
- Standard: DIN 43
- Voltage Rating: 60VDC
- Voltage Rating V DC: 60mV
