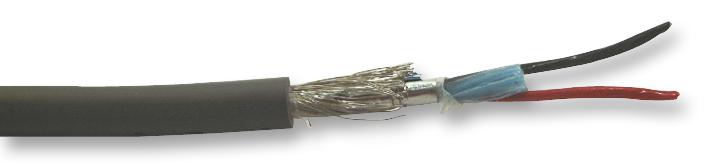

ALPHA WIRE - 86212CY SL005 - Multicore Cable, Xtra Guard® Flex Data, Screened, 12 Core, 24 AWG, 0.23 mm², 100 ft, 30.5 m
- Cable Shielding: Screened
- No. of Cores: 12Core
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.23mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Slate
- No. of Max Strands x Strand Size: 10 x 0.16mm
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- External Diameter: 8.1mm
- Voltage Rating: 300V
- Product Range: Xtra-Guard®
- SVHC: No SVHC (15-Jan-2019)
- Bend Flexing Radius Min: 8 X Cable Diameter
- Cable Type: Foil + Spiral Shield
- Conductor Make-up: 10 / 0.16mm
- Operating Temperature Max: 105°C
- Operating Temperature Min: 5°C
- Outer Diameter: 8.1mm
- Primary Insulation Thickness: 0.25mm
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Secondary Insulation Thickness: 1mm
- Voltage Rating VAC: 300V
- Wire Size: 24AWG
