8762 060U500 Cable, 8762, 1Pair, 153M Belden

BELDENUGS :8762 060U500 Code de commande:1182143

Prix:
Prix ​​promotionnel€405,57

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (7 unité)

Documents et téléchargements

description

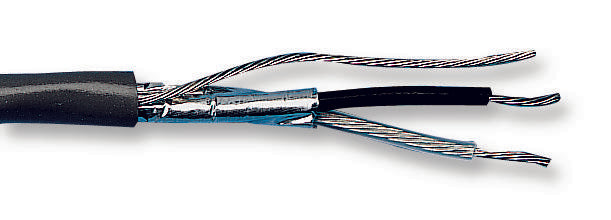

BELDEN - 8762 060U500 - Multipair Cable, Audio Control, Screened, 1 Pair, 20 AWG, 0.519 mm², 500 ft, 152.4 m

  • Cable Shielding: Screened
  • No. of Pairs: 1 Pair
  • Wire Gauge: 20AWG
  • Conductor Area CSA: 0.519mm²
  • Reel Length (Imperial): 500ft
  • Reel Length (Metric): 152.4m
  • Jacket Colour: Chrome
  • No. of Max Strands x Strand Size: 7 x 0.32mm
  • Voltage Rating: 300V
  • Jacket Material: PVC
  • Conductor Material: Copper
  • External Diameter: 5.18mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Alpha Type Number: 2411C EQUIVALENT
  • Approval Bodies: UL
  • Belden Type Number: 8762
  • Cable Type: Foil Shield
  • Cable UL Style Number: UL2092
  • Conductor Make-up: 7 / 28AWG
  • Core - Core Capacitance: 89pF/m
  • Core-Screen Capacitance: 161pF/m
  • Current Rating: 3.9A
  • No. of Cores: 2Core
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
  • Outer Diameter: 5.18mm
  • Secondary Insulation Colour: Chrome
  • Secondary Insulation Material: PVC
  • Wire Size: 20AWG
