8777 060U500 Cable, 8777, 3PAIR, 153M Belden

BELDENUGS :8777 060U500 Code de commande:1182147

Prix:
Prix ​​promotionnel€843,04

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

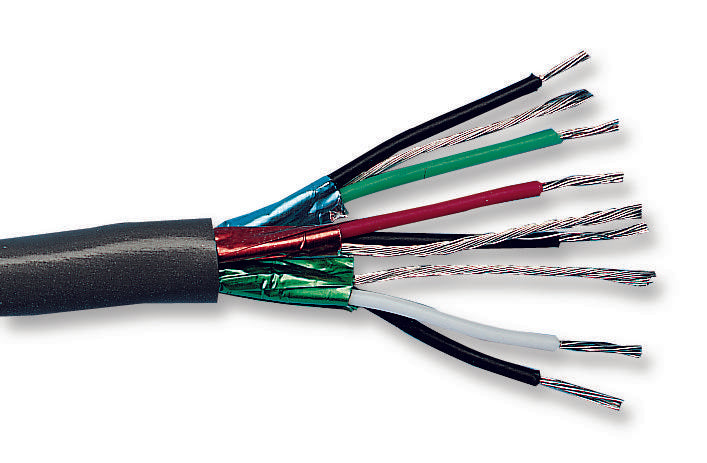

BELDEN - 8777 060U500 - Multipair Cable, Audio Control, Screened, 3 Pair, 22 AWG, 0.325 mm², 498.69 ft, 152.4 m

  • Cable Shielding: Screened
  • No. of Pairs: 3 Pair
  • Wire Gauge: 22AWG
  • Conductor Area CSA: 0.325mm²
  • Reel Length (Imperial): 498.69ft
  • Reel Length (Metric): 152.4m
  • Jacket Colour: Chrome
  • No. of Max Strands x Strand Size: 7 x 0.255mm
  • Voltage Rating: 300V
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • External Diameter: 6.93mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Alpha Type Number: 6010C EQUIVALENT
  • Belden Type Number: 8777
  • Cable Type: Foil Shield
  • Cable UL Style Number: UL2919
  • Complex Cable Make-Up: 3 x 7/30
  • Conductor Make-up: 7 / 30AWG
  • Core - Core Capacitance: 98pF/m
  • Current Rating: 2A
  • Drain Wire Type: 22AWG (7/30AWG)
  • Flammability Rating: VW-1
  • No. of Cores: 6Core
  • Outer Diameter: 6.93mm
  • Primary Insulation Thickness: 0.25mm
  • Resistance per Metre: 49.2ohm/km
  • Screen Resistance: 34.8ohm/km
  • Screen Type Primary: Aluminium Polyester
  • Secondary Insulation Colour: Chrome
  • Secondary Insulation Material: PVC
  • Secondary Insulation Thickness: 1.22mm
  • Wire Size: 22AWG
