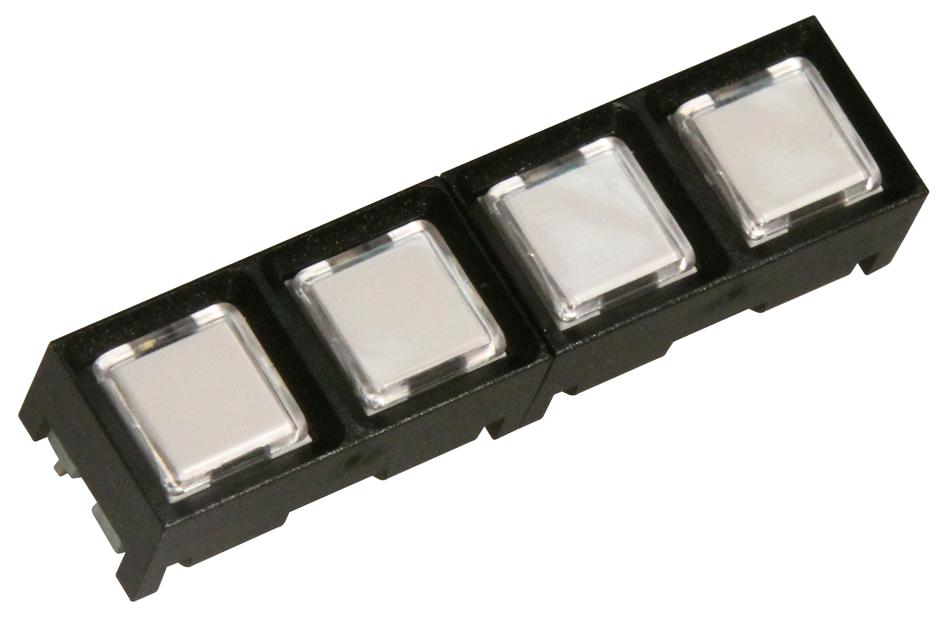

GRAYHILL - 87FC3-201 - Keypad, 87, 1 x 4, Matrix, PC (Polycarbonate), 10 mA, 24 V
- Product Range: 87 Series
- Keypad Array: 1 x 4
- Keypad Output: Matrix
- Housing Material: PC (Polycarbonate)
- Contact Current Max: 10mA
- Contact Voltage DC Nom: 24V
- No. of Keys: 4
- Panel Cutout Width: 50.55mm
- Panel Cutout Height: 12.45mm
- SVHC: No SVHC (27-Jun-2018)
- Actuator / Cap Colour: White
- Contact Configuration: SPST-NO
- External Depth: 12.45mm
- External Length / Height: 9.27mm
- External Width: 12.45mm
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Row Pitch: 12.7mm
- Switch Terminals: Solder
