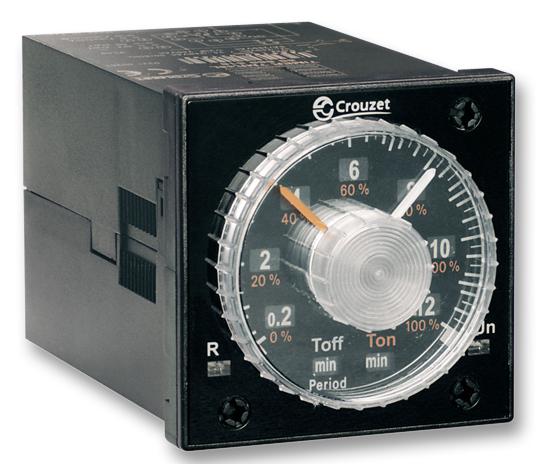

88 886 516 Timer, TMR48L, 11 Pin CROUZET

CROUZET - 88 886 516 - Analogue Timer, TMR 48 L, Multifunction, 14 Ranges, 0.02 s, 300 h, 2 Changeover Relays

• Product Range: TMR 48 L Series
• Timer Functions: Multifunction
• No. of Timing Ranges: 14Ranges
• Time Min: 0.02s
• Time Max: 300h
• Timer Output: 2 Changeover Relays
• Supply Voltage Max: 240V
• Current Rating Nom: 5A
• Connection / Termination: Plug-In
• Panel Cutout Height: 45mm
• Panel Cutout Width: 45mm
• Accuracy %: 0.5%
• Adjustment Type: Rotary
• Coil Voltage VAC Nom: 230V
• Coil Voltage VDC Nom: 24V
• Contact Configuration: DPDT
• Contact Current AC Max: 5A
• Contact Voltage AC Max: 250V
• Delay Time Range: 0.02s to 300h
• External Depth: 81.3mm
• External Length / Height: 48mm
• External Width: 48mm
• Mechanical Life: 100000
• No. of Pins: 11Pins
• Nom Input Voltage: 240V
• Operating Temperature Max: 55°C
• Operating Temperature Min: -20°C
• Operating Time Range: 14 ranges from 0.02s to 300Hr
• Relay Mounting: Panel
• Repeat Accuracy +: 0.5%
• Repeat Accuracy -: 0.5%
• Reset Time: 100ms
• Supply Voltage AC Max: 240VAC
• Supply Voltage AC Min: 24VAC
• Supply Voltage DC Max: 240VDC
• Supply Voltage DC Min: 12VDC
• Type: TMR48L
