description

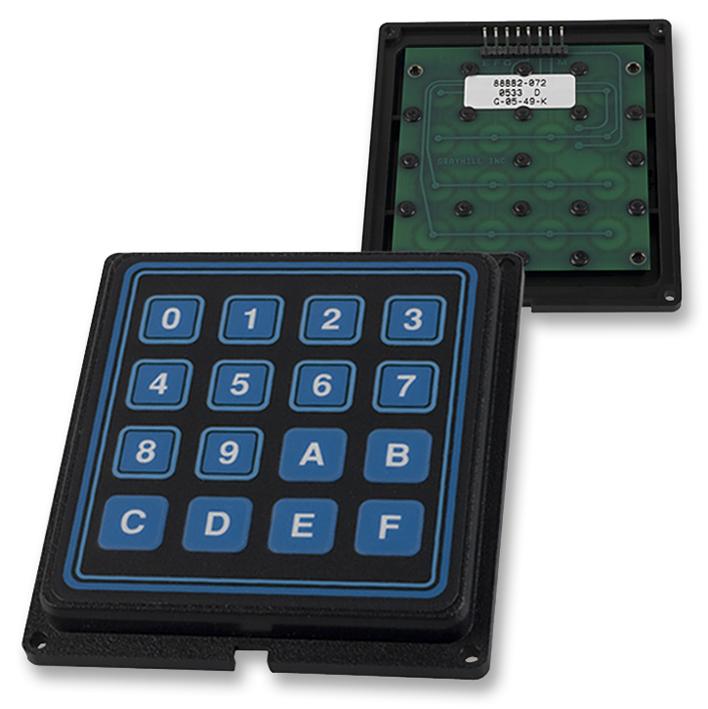

GRAYHILL - 88BB2-072 - Keypad, Blue 0 - 9, A - F legends Series, 4 x 4, Matrix, ABS (Acrylonitrile Butadiene Styrene)
- Product Range: Blue 0 - 9, A - F legends Series
- Keypad Array: 4 x 4
- Keypad Output: Matrix
- Housing Material: ABS (Acrylonitrile Butadiene Styrene)
- Contact Current Max: 10mA
- Contact Voltage DC Nom: 24V
- No. of Keys: 16
- Panel Cutout Width: 63.25mm
- Panel Cutout Height: 68.33mm
- SVHC: No SVHC (27-Jun-2018)
- Bezel Height: 68.33mm
- Bezel Width: 63.5mm
- Breakdown Voltage Vbr: 250VAC
- Case Material: ABS polycarbonate
- Colour: Black
- Contact Current DC Max: 10mA
- Contact Current Rating: 10mA
- Contact Resistance: 10ohm
- Contact Voltage DC Max: 24V
- External Depth: 9.14mm
- External Width: 68.58mm
- Height: 76.2mm
- Lead Spacing: 2.54mm
- No. of Electrical Operations: 3000000
- No. of Mechanical Operations: 3000000
- Operating Force: 3.43N
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Travel: 0.38mm
