Alle Relais

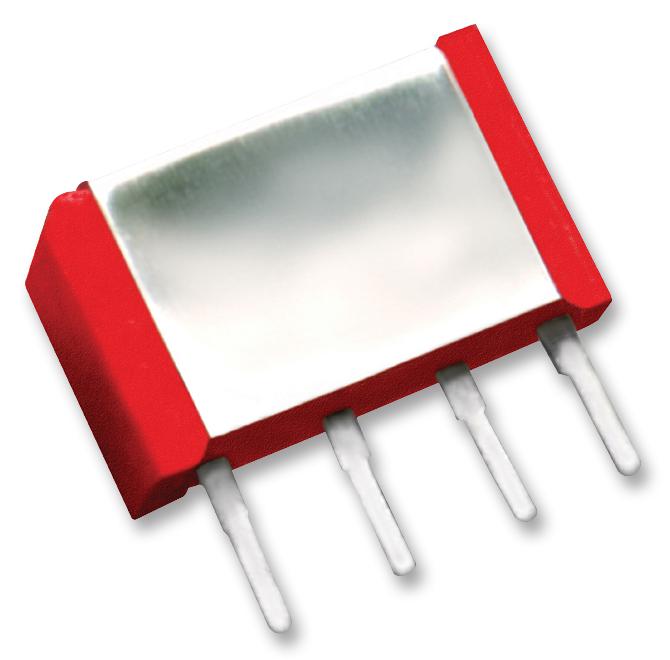

9011-05-10 RELAY, REED, SPST-NO, 100V, 0.25A, THT COTO TECHNOLOGY
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer
9011-05-10 RELAY, REED, SPST-NO, 100V, 0.25A, THT COTO TECHNOLOGY

9011-05-10 Relay, Reed, SPST-NO, 100V, 0.25A, THT COTO Technology

COTO TECHNOLOGYUGS :9011-05-10 Code de commande:1454989
Prix:
€17,48

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

Fiche produit

description

COTO TECHNOLOGY - 9011-05-10 - Reed Relay, SPST-NO, 5 VDC, 9011, Through Hole, 500 ohm, 250 mA

  • Contact Configuration: SPST-NO
  • Coil Voltage: 5VDC
  • Product Range: 9011 Series
  • Relay Mounting: Through Hole
  • Coil Resistance: 500ohm
  • Switching Current Max: 250mA
  • Switching Voltage Max: 100V
  • SVHC: No SVHC (15-Jan-2019)
  • Coil Voltage Max: 6.5VDC
  • Coil Voltage VDC Nom: 5V
  • Contact Current DC Max: 250mA
  • Contact Resistance: 150mohm
  • Contact Voltage DC Max: 100V
  • External Depth: 10.16mm
  • External Height: 6.73mm
  • External Length / Height: 6.73mm
  • External Width: 3.81mm
  • Insulation Resistance: 1000Gohm
  • Must Actuate Voltage: 3.75VDC
  • Must Release Voltage: 0.4VDC
  • No. of Electrical Operations: 250000000
  • No. of Mechanical Operations: 250000000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C
  • Operating Time: 0.35ms
  • Release Time: 0.1ms
  • Switch Current Max: 250mA
  • Switch Power Max: 3W
  • Type: Magnetic Shield

Tu pourrais aussi aimer

9011-05-11 RELAY, REED, SPST-NO, 100V, 0.25A, THT COTO TECHNOLOGY
COTO TECHNOLOGY 9011-05-11 Relay, Reed, SPST-NO, 100V, 0.25A, THT COTO Technology
€20,48
Il ne reste que 5 produits
9007-05-00 RELAY, REED, SPST-NO, 200V, 0.5A, THT COTO TECHNOLOGY
COTO TECHNOLOGY 9007-05-00 Relay, Reed, SPST-NO, 200V, 0.5A, THT COTO Technology
€7,75
En stock, 4662 produits
2911-12-301 RELAY, REED, SPDT, 150V, 0.25A, THT COTO TECHNOLOGY
COTO TECHNOLOGY 2911-12-301 Relay, Reed, SPDT, 150V, 0.25A, THT COTO Technology
€50,42
En stock, 270 produits
9001-05-01 - Reed Relay, SPST-NO, 5 VDC, 9000, Through Hole, 500 ohm, 500 mA - COTO TECHNOLOGY
COTO TECHNOLOGY 9001-05-01 - Reed Relay, SPST-NO, 5 VDC, 9000, Through Hole, 500 ohm, 500 mA - COTO TECHNOLOGY
€11,19
En stock, 13 produits
100-1-A-5/2D - Reed Relay, SPST-NO, 5 V, 100 Series, Through Hole, 3.3 kohm, 500 mA - PICKERING
PICKERING 100-1-A-5/2D - Reed Relay, SPST-NO, 5 V, 100 Series, Through Hole, 3.3 kohm, 500 mA - PICKERING
€23,52
Il ne reste que 6 produits

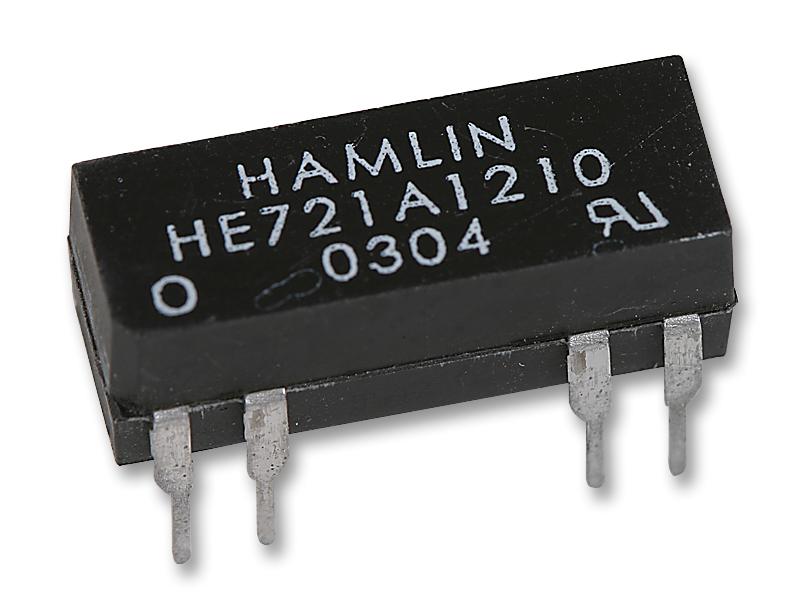

HE721A1210 RELAY, REED, SPST-NO, 200VDC, 0.5A, THT HAMLIN
