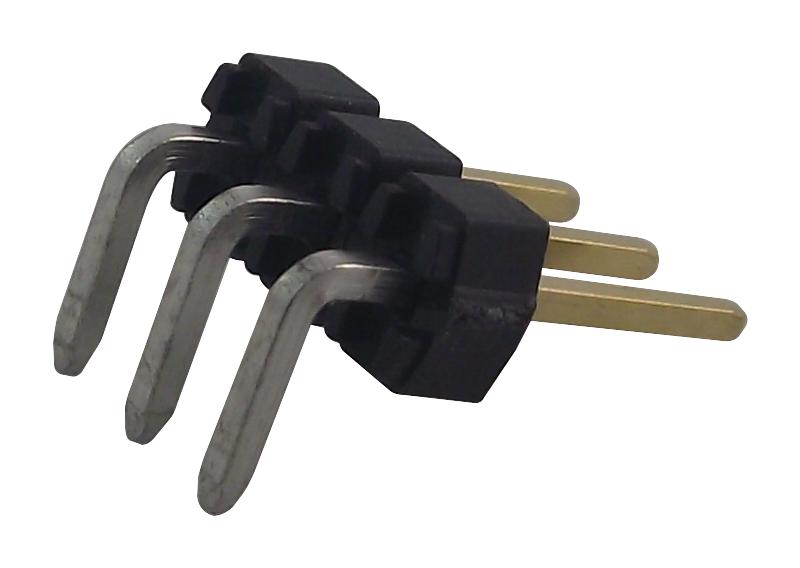

MOLEX - 90121-0763 - Pin Header, Right Angle, Signal, 2.54 mm, 1 Rows, 3 Contacts, Through Hole Right Angle
- Pitch Spacing: 2.54mm
- No. of Contacts: 3Contacts
- Gender: Header
- Product Range: C-Grid III 90121 Series
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL
- Contact Resistance: 20mohm
- Current Rating: 3A
- Insulation Resistance: 5000Mohm
- Material: Glass Filled Polyester UL94V-0
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Voltage Rating VAC: 350V
- Working Voltage: 350V
