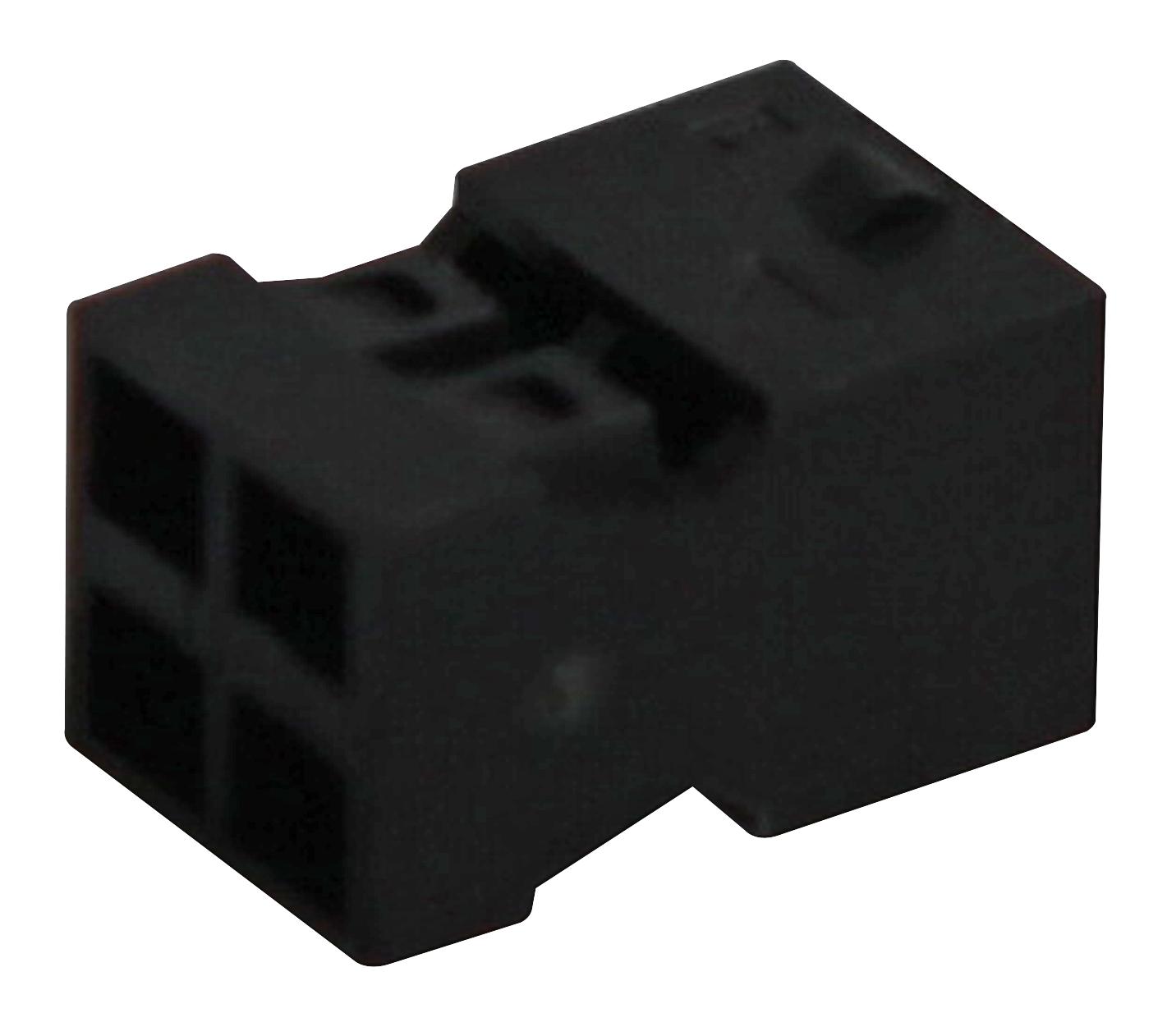

90311-004LF Crimp Housing, 4WAY, Minitek Amphenol ICC

AMPHENOL ICCUGS :90311-004LF Code de commande:1623777

Prix:
Prix ​​promotionnel€1,09

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (516 unité)

Documents et téléchargements

description

PHOENIX CONTACT - 1623777 - Circular Connector Contact, Pin, Crimp, Phoenix M23 Sensor Housing Connectors

  • Pitch Spacing: 2mm
  • No. of Contacts: 4Contacts
  • Gender: Receptacle
  • Product Range: Minitek Series
  • Contact Termination Type: Crimp
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Black
  • Contact Resistance: 20mohm
  • Current Rating: 2A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Material: Thermoplastic
  • No. of Mating Cycles: 100
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Voltage Rating VAC: 200V
  • Withstand Voltage: 650V
