9091-12-01 Relay, Reed, SPST-NO, 200V, 0.5A, THT COTO Technology

COTO TECHNOLOGYUGS :9091-12-01 Code de commande:1081626

Prix:
Prix ​​promotionnel€14,76

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (55 unité)

Documents et téléchargements

description

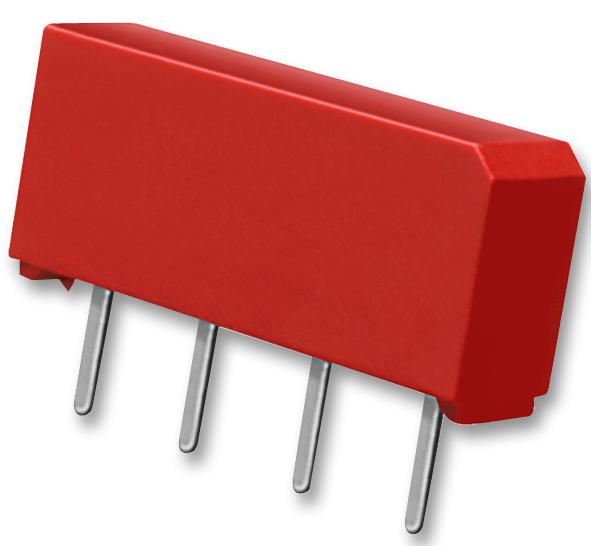

COTO TECHNOLOGY - 9091-12-01 - Reed Relay, SPST-NO, 12 VDC, 9091, Through Hole, 1 kohm, 500 mA

  • Contact Configuration: SPST-NO
  • Coil Voltage: 12VDC
  • Product Range: 9091 Series
  • Relay Mounting: Through Hole
  • Coil Resistance: 1kohm
  • Switching Current Max: 500mA
  • Switching Voltage Max: 200V
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: UL
  • Coil Voltage Max: 15VDC
  • Coil Voltage VDC Nom: 12V
  • Contact Current DC Max: 500mA
  • Contact Resistance: 125mohm
  • Contact Voltage DC Max: 200V
  • External Depth: 15.62mm
  • External Height: 6.98mm
  • External Length / Height: 6.98mm
  • External Width: 3.81mm
  • Insulation Resistance: 1000Gohm
  • Lead Spacing: 3.81mm
  • Must Actuate Voltage: 9VDC
  • Must Release Voltage: 1VDC
  • No. of Pins: 4Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C
  • Operating Time: 0.5ms
  • Release Time: 0.3ms
  • Switch Current Max: 500mA
  • Switch Power Max: 10W
  • Type: Diode
