description

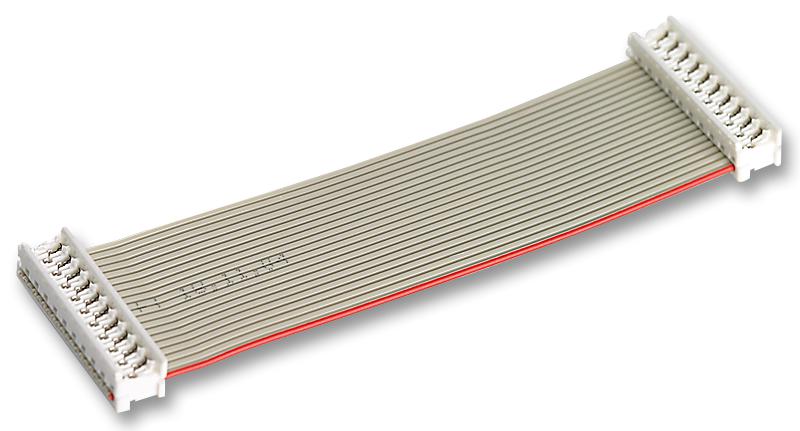

MOLEX - 92315-2015 - Ribbon Cable, PF50 Receptacle to PF50 Receptacle, 20 Ways, 5.9 ", 150 mm, 1.27 mm, Picoflex 92315
- Connector to Connector: PF50 Receptacle to PF50 Receptacle
- No. of Positions: 20Ways
- Cable Length - Imperial: 5.9"
- Cable Length - Metric: 150mm
- Connector Pitch: 1.27mm
- Cable Pitch: 0.635mm
- Product Range: Picoflex 92315 Series
- SVHC: No SVHC (07-Jul-2017)
- Cable Assembly Type: Picoflex, Ribbon
- Cable Length: 0.15m
- Colour: Natural
- Connector Type A: PF50 Receptacle
- Connector Type B: PF50 Receptacle
- Current Rating: 1.2A
- External Length / Height: 15mm
- Flammability Rating: UL94V-0
- Jacket Colour: Natural
- Lead Length: 150mm
- No. of Cores: 20Core
- Operating Temperature Max: 105°C
- Operating Temperature Min: -20°C
- Pitch Spacing: 1.27mm
- Working Voltage: 250V
