9504 060U1000 CABLE, 9504, 4PAIR, 305M BELDEN

BELDENUGS :9504 060U1000 Code de commande:1182096

Prix:
Prix ​​promotionnel€1.228,39

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seul 1 produit disponible

Documents et téléchargements

description

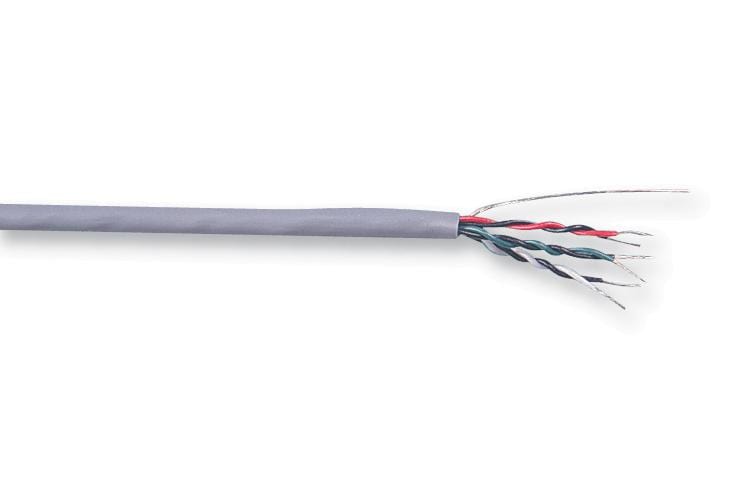

BELDEN - 9504 060U1000 - Multipair Cable, Computer, Screened, 4 Pair, 24 AWG, 0.2 mm², 1000 ft, 304.8 m

  • Cable Shielding: Screened
  • No. of Pairs: 4 Pair
  • Wire Gauge: 24AWG
  • Conductor Area CSA: 0.2mm²
  • Reel Length (Imperial): 1000ft
  • Reel Length (Metric): 304.8m
  • Jacket Colour: Chrome
  • No. of Max Strands x Strand Size: 7 x 0.2mm
  • Voltage Rating: 300V
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • External Diameter: 6.73mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Alpha Type Number: 5474C EQUIVALENT
  • Approval Bodies: UL
  • Belden Type Number: 9504
  • Cable Type: Foil Shield
  • Cable UL Style Number: UL2464
  • Complex Cable Make-Up: 8 x 7/32
  • Conductor Make-up: 7 / 32AWG
  • Core - Core Capacitance: 98pF/m
  • Core-Screen Capacitance: 164pF/m
  • Current Rating: 1.5A
  • Drain Wire Type: Tinned Copper
  • No. of Cores: 8Core
  • Outer Diameter: 6.73mm
  • Primary Conductor Resistance: 78.7ohm/km
  • Screen Resistance: 55.8ohm/km
  • Screen Type Primary: Aluminium Polyester
  • Secondary Insulation Colour: Chrome
  • Secondary Insulation Material: PVC
  • Wire Size: 24AWG
