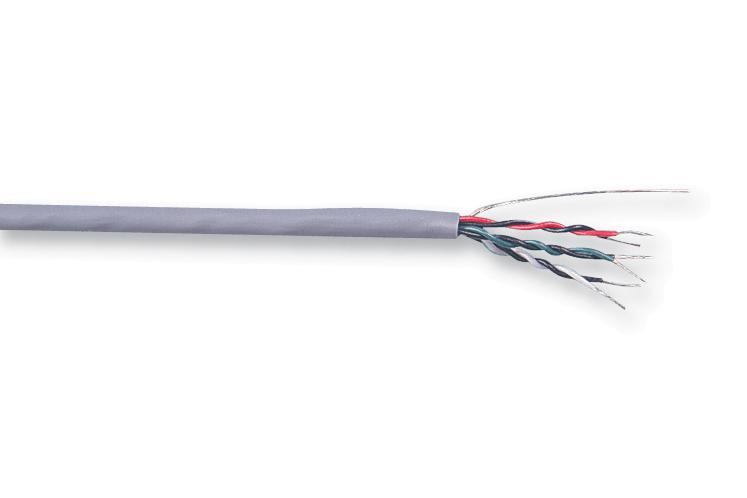

BELDEN - 9505 060U500 - Multipair Cable, Computer, Screened, 5 Pair, 24 AWG, 0.2 mm², 498.69 ft, 152.4 m
- Cable Shielding: Screened
- No. of Pairs: 5 Pair
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.2mm²
- Reel Length (Imperial): 498.69ft
- Reel Length (Metric): 152.4m
- Jacket Colour: Chrome
- No. of Max Strands x Strand Size: 7 x 0.2mm
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 7.34mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Alpha Type Number: 5475C EQUIVALENT
- Approval Bodies: UL
- Belden Type Number: 9505
- Cable Type: Foil Shield
- Cable UL Style Number: UL2464
- Complex Cable Make-Up: 10 x 7/32
- Conductor Make-up: 7 / 32AWG
- Core - Core Capacitance: 98pF/m
- Core-Screen Capacitance: 164pF/m
- Current Rating: 1.5A
- Drain Wire Type: Tinned Copper
- No. of Cores: 10Core
- Outer Diameter: 7.34mm
- Primary Conductor Resistance: 78.7ohm/km
- Screen Resistance: 55.8ohm/km
- Screen Type Primary: Aluminium Polyester
- Secondary Insulation Colour: Chrome
- Secondary Insulation Material: PVC
- Wire Size: 24AWG
