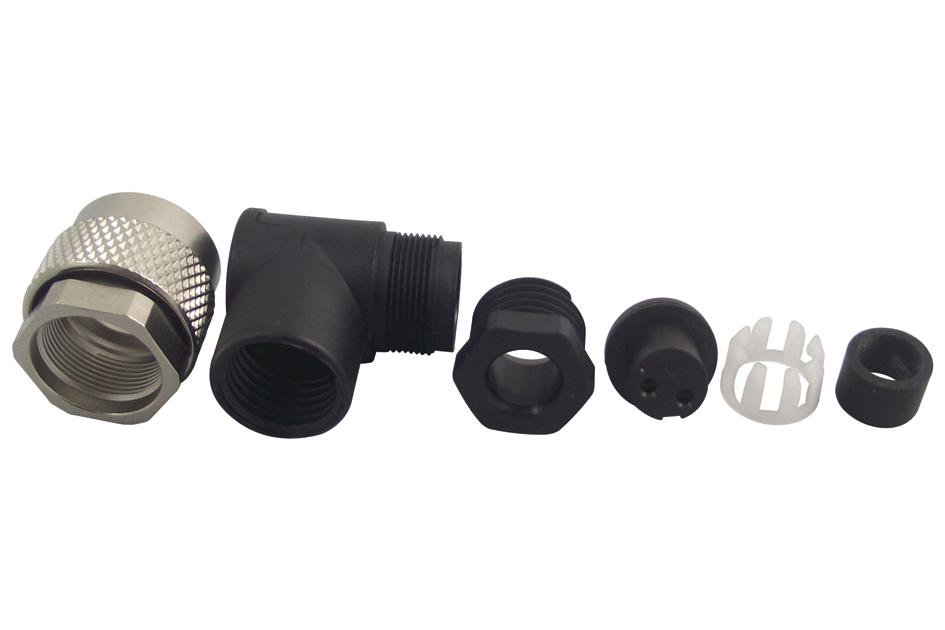

BINDER - 99 0402 70 02 - Circular Connector, 712 Series, Cable Mount Receptacle, 2 Contacts, Solder Socket
- Product Range: 712 Series
- Circular Connector Shell Style: Cable Mount Receptacle
- No. of Contacts: 2Contacts
- Circular Contact Type: Solder Socket
- Coupling Style: -
- Connector Body Material: -
- Connector Body Plating: -
- Contact Material: Bronze
- Contact Plating: Gold
- SVHC: Lead (27-Jun-2018)
- Cable Diameter Max: 5mm
- Connector Mounting: Cable Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 2mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Contact to Contact Capacitance: 1.5pF
- Current Rating: 4A
- Gender: Receptacle
- IP / NEMA Rating: IP65
- Insulation Resistance: 10Gohm
- No. of Mating Cycles: 500
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 125V
- Wire Area Size Max: 0.25mm²
- Withstand Voltage: 1500V
