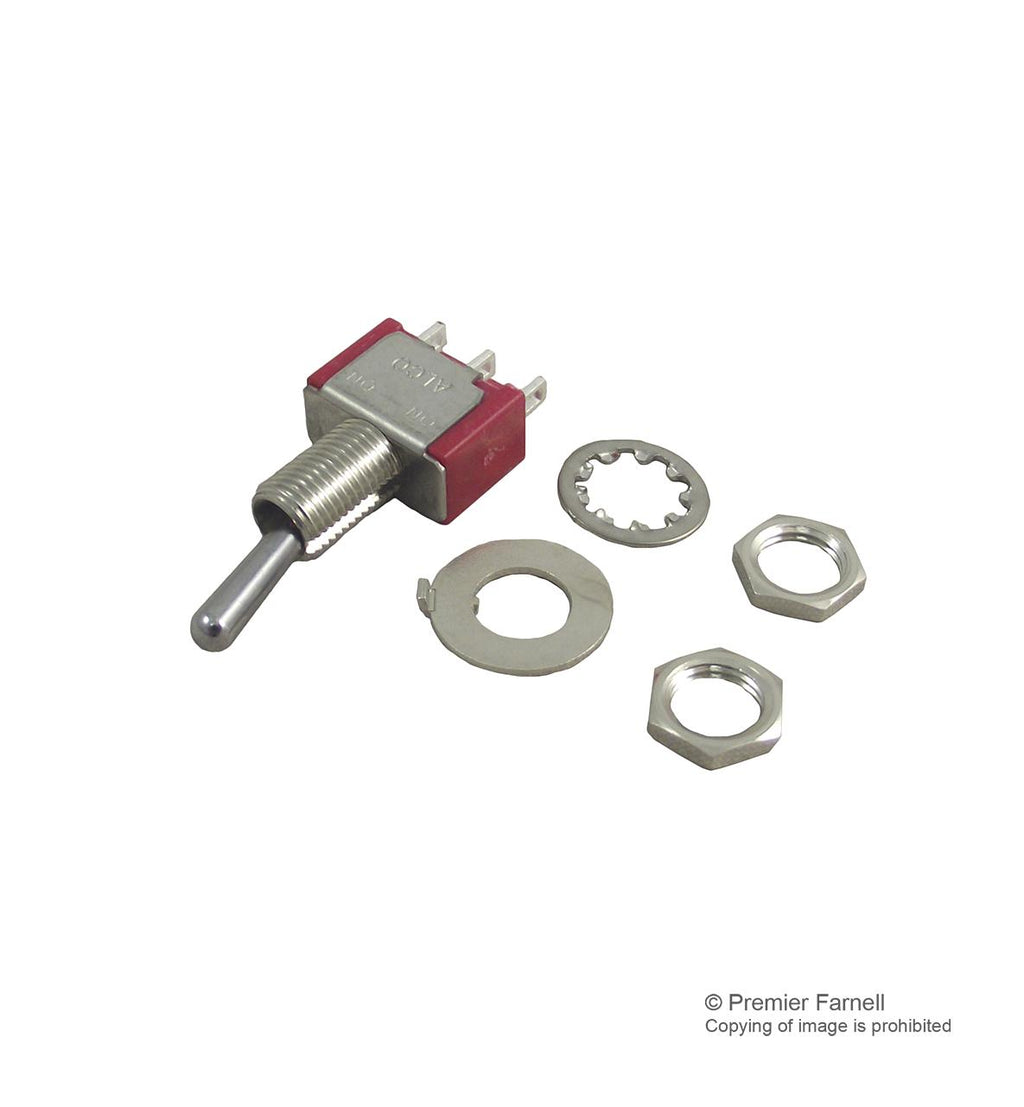

TE CONNECTIVITY - A101SYZQ04 - Toggle Switch, On-On, SPDT, Non Illuminated, GEMINI, Panel Mount, 5 A
- Switch Operation: On-On
- Contact Configuration: SPDT
- Illumination: Non Illuminated
- Product Range: GEMINI Series
- Contact Current Max: 5A
- Switch Mounting: Panel
- Contact Voltage AC Nom: 250V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 30V
- SVHC: Lead (27-Jun-2018)
- Actuation Type: Bat
- Bush Thread Length: 8.9mm
- Contact Current @ Contact Voltage AC Max: 2A
- Contact Current @ Contact Voltage DC Max: 5A
- Contact Current AC Max: 5A
- Contact Current DC Max: 5A
- Contact Resistance: 30mohm
- Contact Resistance Max: 30mohm
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 30V
- Dielectric Strength VDC: 1000V
- External Depth: 0.27"
- External Length / Height: 8.9mm
- External Width: 0.5"
- Flammability Rating: UL94V-0
- Height: 0.35"
- Insulation Resistance: 1000Mohm
- Lead Spacing: 4.7mm
- Material: Thermoset
- No. of Mechanical Operations: 30000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -20°C
- Switch Action: break before make
- Thread Size: 1/4 x 40NS
