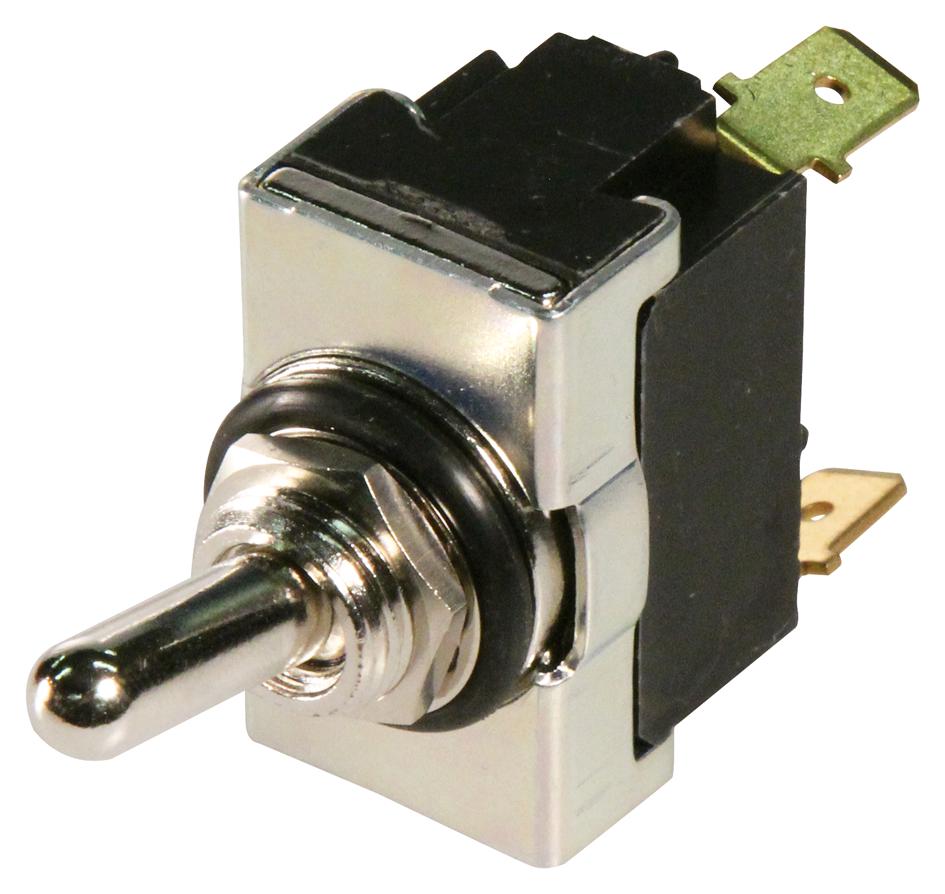

A107SYCB04 Toggle Switch, SPDT, On-Off-On Te Connectivity

TE CONNECTIVITYUGS :A107SYCB04 Code de commande:1436227

Prix:
Prix ​​promotionnel€7,25

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (29 unité)

Documents et téléchargements

description

TE CONNECTIVITY - A107SYCB04 - Toggle Switch, On-Off-(On), SPDT, Non Illuminated, A, Panel Mount

  • Switch Operation: On-Off-(On)
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: A Series
  • Contact Current Max: -
  • Switch Mounting: Panel
  • Contact Voltage AC Nom: 20V
  • Switch Terminals: PC Pin
  • Contact Voltage DC Nom: 20V
  • SVHC: Lead (15-Jan-2019)
  • Actuation Type: Long Bat Lever
  • Bush Thread Length: 7.11mm
  • Contact Resistance: 30mohm
  • Contact Resistance Max: 30mohm
  • Contact Voltage AC Max: 20VAC
  • Contact Voltage DC Max: 20VDC
  • Dielectric Strength VDC: 1000V
  • External Depth: 6.7mm
  • External Length / Height: 34.5mm
  • External Width: 12.7mm
  • Flammability Rating: UL94V-0
  • Height: 9.09mm
  • Insulation Resistance: 30Mohm
  • Insulation Resistance Voltage: 500VDC
  • Lead Spacing: 4.7mm
  • Lever Length: 10.4mm
  • No. of Electrical Operations: 30000
  • No. of Mechanical Operations: 30000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C
  • Shaft Diameter: 2.92mm
  • Switching Power Max: 0.4VA
  • Thread Size: 1/4 x 40NS
