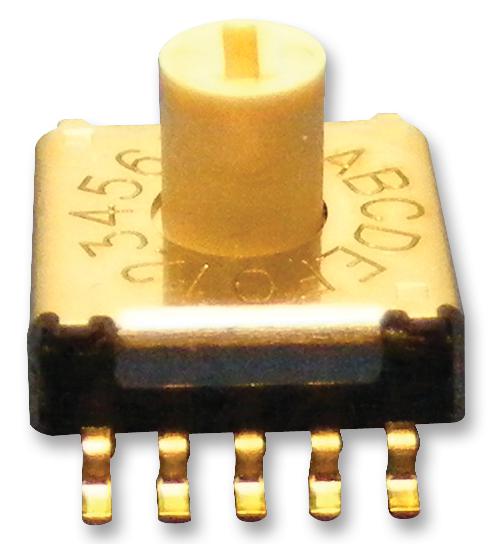

OMRON - A6KS-102RS - Rotary Switch, 10 Position, A6KS
- No. of Switch Positions: 10 Position
- No. of Poles: -
- Angle of Throw: -
- Contact Current AC Max: -
- Contact Voltage AC Max: -
- Product Range: A6KS Series
- Illumination: Non Illuminated
- Contact Current DC Max: 25mA
- Contact Voltage DC Max: 24V
- Contact Resistance: 200mohm
- Contact Voltage DC Min: 3.5VDC
- External Depth: 6mm
- External Width: 7.2mm
- Height: 7.2mm
- Lead Spacing: 2.54mm
- No. of Electrical Operations: 20000
- No. of Positions: 10Ways
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Shaft Diameter: 2.8mm
