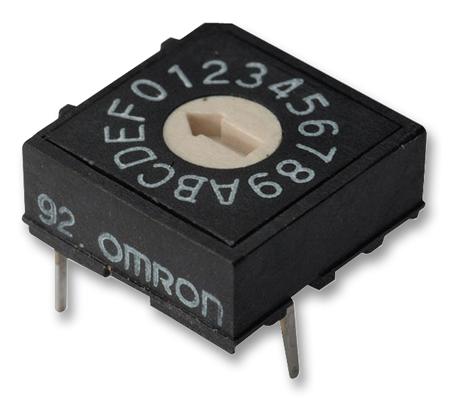

A6R-162RF Rotary Dip Switch Omron

OMRONUGS :A6R-162RF Code de commande:8774358

Prix:
Prix ​​promotionnel€7,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (49 unité)

Documents et téléchargements

description

OMRON - A6R-162RF - Rotary Coded Switch, A6R, Through Hole, 16 Position, 24 VDC, Hexadecimal, 25 mA

  • Product Range: A6R Series
  • Switch Mounting: Through Hole
  • No. of Switch Positions: 16 Position
  • Switching Voltage: 24VDC
  • Output Code: Hexadecimal
  • Switching Current: 25mA
  • Switch Construction: Sealed
  • Actuator Level: Flushed
  • Actuation Type: Flat
  • Actuator Type: Screwdriver Slot
  • Contact Current DC Max: 25mA
  • Contact Current Rating: 25mA
  • Contact Resistance: 200mohm
  • Contact Voltage DC Max: 24V
  • Insulation Resistance: 100Mohm
  • Lead Spacing: 2.54mm
  • No. of Positions: 16Ways
  • Operating Force: 1.96N
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -25°C
  • Pitch Spacing: 2.54mm
  • Switch Type: DIP
  • Switching Capacity: 25 mA
