AB05 6027 10 07 SN00 Socket, Free, 7WAY TT Electronics / Ab Connectors

TT ELECTRONICS / AB CONNECTORSUGS :AB05 6027 10 07 SN00 Code de commande:107903

Prix:
Prix ​​promotionnel€130,84

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (22 unité)

Documents et téléchargements

description

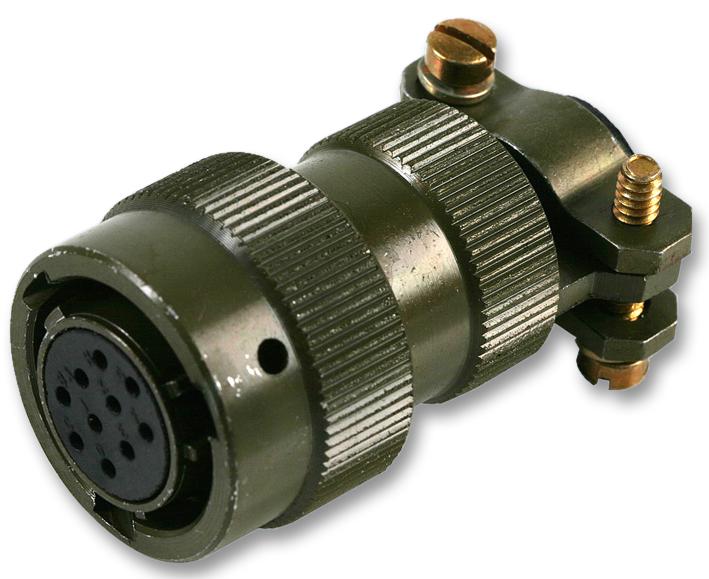

TT ELECTRONICS / AB CONNECTORS - AB05 6027 10 07 SN00 - Circular Connector, AB05, Straight Plug, 7 Contacts, Solder Socket, Bayonet, 10-7

  • Product Range: AB05 Series
  • Circular Connector Shell Style: Straight Plug
  • No. of Contacts: 7Contacts
  • Circular Contact Type: Solder Socket
  • Coupling Style: Bayonet
  • Insert Arrangement: 10-7
  • Connector Body Material: Aluminium Alloy Body
  • Connector Body Plating: Olive Drab Chromate over Cadmium
  • Contact Material: Brass
  • Contact Plating: Gold
  • Insert Rotation: N
  • Service Class: Corrosion Resistant
  • Equivalent Military Specification: MIL-DTL-26482 Series I
  • Approval Bodies: BS
  • Cable Diameter Max: 5.02mm
  • Colour: Olive
  • Contact Gender: Socket
  • Contact Resistance: 5mohm
  • Coupling Diameter: 21.8mm
  • Current Rating: 5A
  • External Length / Height: 51.33mm
  • IP / NEMA Rating: IP67
  • No. of Mating Cycles: 500
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Voltage Rating VAC: 700V
  • Working Voltage: 700V
