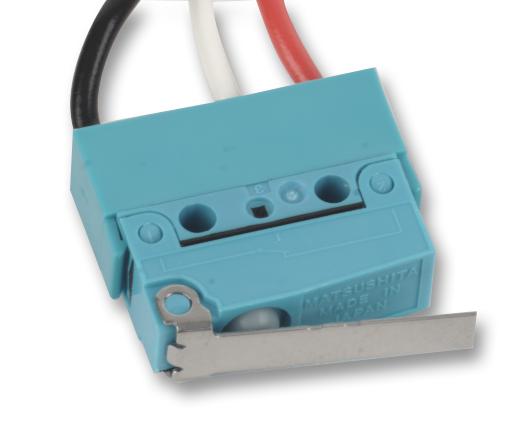

ABS161240 Microswitch, Hinge Lever Panasonic

PANASONICUGS :ABS161240 Code de commande:3726976

Prix:
Prix ​​promotionnel€17,02

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (88 unité)

Documents et téléchargements

description

PANASONIC - ABS161240 - Microswitch, Snap Action, Lever, SPDT, Wire Leaded, 2 A, 125 VDC

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Lever
  • Contact Configuration: SPDT
  • Switch Terminals: Wire Leaded
  • Contact Current Max: 2A
  • Contact Voltage DC Nom: 125VDC
  • Product Range: ABS Series
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 35gf
  • SVHC: No SVHC (07-Jul-2017)
  • Actuation Type: Lever
  • Actuator Type: Hinge Lever
  • Contact Current @ Contact Voltage AC Max: 2A
  • Contact Current @ Contact Voltage DC Max: 2A
  • Contact Current AC: 2A
  • Contact Current AC Max: 2A
  • Contact Current DC Max: 2A
  • Contact Resistance: 100mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 30V
  • Differential Travel Max: 0.8mm
  • External Depth: 6.4mm
  • External Length / Height: 16.9mm
  • External Width: 21.2mm
  • Fixing Centres LxW: 9.5mm
  • IP / NEMA Rating: IP67
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • No. of Electrical Operations: 50000
  • No. of Mechanical Operations: 5000000
  • Operating Force: 0.34N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
