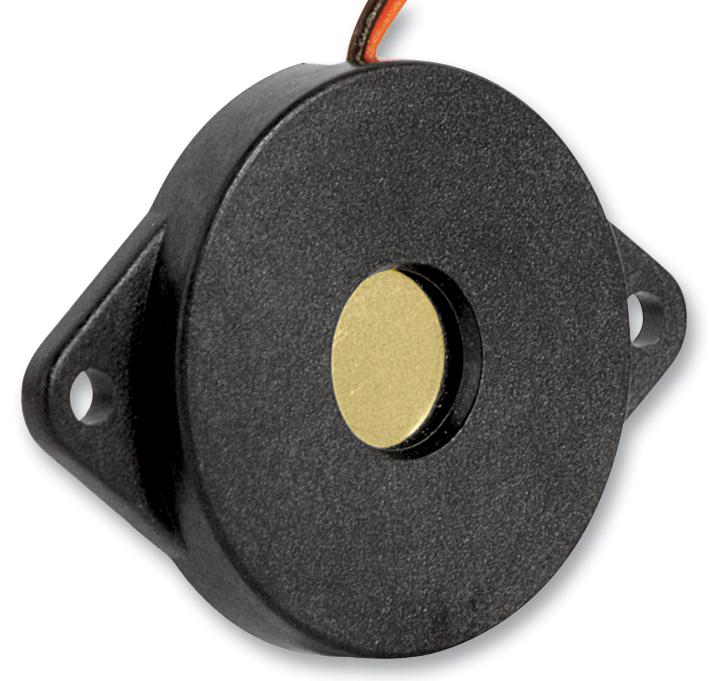

MULTICOMP PRO - ABT-422-RC - Transducer, Piezo, Leaded, 1 V, 8 mA, 90 dB, 5.5 kHz
- Transducer Function: Buzzer
- Supply Voltage Min: 1V
- Supply Voltage Max: -
- Current Rating: 8mA
- Tones: -
- Sound Level SPL: 90dB
- Resonant Frequency: 5.5kHz
- Transducer Mounting: -
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Colour: Black
- Current Consumption: 8mA
- External Depth: 4mm
- External Diameter: 24mm
- External Length / Height: 4mm
- Fixing Centres: 29mm
- Fixing Hole Diameter: 2.3mm
- Frequency: 5500Hz
- Lead Length: 50mm
- Material: ABS
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Sound Level Distance: 10cm
- Supply Voltage: 15V
- Supply Voltage AC Max: 30V
- Supply Voltage AC Min: 1V
- Supply Voltage Max: 30V
- Weight: 3g
