ABV161661 Microswitch, Roller Lever Panasonic

PANASONICUGS :ABV161661 Code de commande:3727014

Prix:
Prix ​​promotionnel€15,07

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (6 unité)

Documents et téléchargements

description

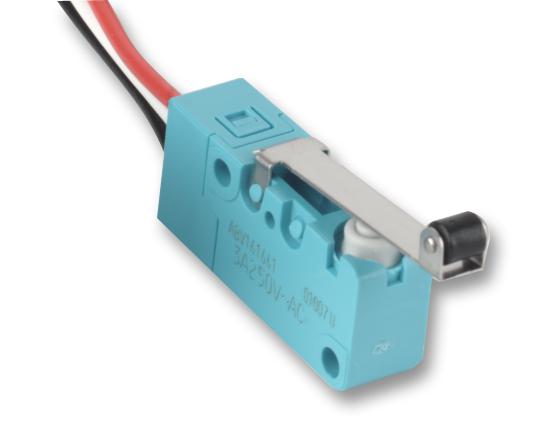

PANASONIC - ABV161661 - Microswitch, Snap Action, Roller Lever, SPDT, Wire Leaded, 3 A

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Roller Lever
  • Contact Configuration: SPDT
  • Switch Terminals: Wire Leaded
  • Contact Current Max: 3A
  • Contact Voltage DC Nom: -
  • Product Range: ABV Series
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 300gf
  • SVHC: No SVHC (07-Jul-2017)
  • Actuation Type: Roller Lever
  • Actuator Type: Roller Lever
  • Contact Current @ Contact Voltage AC Max: 2A
  • Contact Current @ Contact Voltage DC Max: 2A
  • Contact Current AC: 5A
  • Contact Current AC Max: 3A
  • Contact Current DC Max: 5mA
  • Contact Resistance: 100mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 30V
  • Differential Travel Max: 1.2mm
  • External Depth: 10mm
  • External Length / Height: 15.9mm
  • External Width: 36mm
  • Fixing Centres LxW: 22.2mm
  • IP / NEMA Rating: IP67
  • Insulation Resistance: 100Mohm
  • No. of Electrical Operations: 100000
  • No. of Mechanical Operations: 5000000
  • Operating Force: 1.77N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Over Travel Min: 1.2mm
