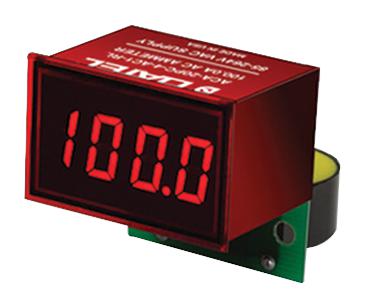

DATEL - ACA-20PC-3-AC1-RL-C - Ammeter, ACA-20PC Series, AC Current, 0A to 50A, 3.5 Digits, 85 Vac to 264 Vac
- No. of Digits / Alpha: 3-1/2
- Meter Function: AC Current
- Meter Range: 0A to 50A
- Digit Height: 9.4mm
- Panel Cutout Height: 21.29mm
- Panel Cutout Width: 33.93mm
- Supply Voltage Min: 85VAC
- Supply Voltage Max: 264VAC
- Operating Temperature Min: 0°C
- Operating Temperature Max: 60°C
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Accuracy: ± 6 Counts
- Accuracy %: 0.15%
- Approval Category: CSA, UL Recognised
- Bezel Height: 22.4mm
- Bezel Width: 35mm
- Character Height: 9.4mm
- Display Area Depth: 25.4mm
- Display Technology: LED
- External Depth: 51.1mm
- External Length / Height: 20.3mm
- External Width: 33mm
- Full Scale Reading: 50.0 A
- LED Colour: Red
- Operating Temperature Range: 0°C to +60°C
- Supply Current: 50mA
- Supply Voltage: 120VAC
- Supply Voltage AC Max: 264VAC
- Supply Voltage AC Min: 85VAC
- Supply Voltage Range: 85V AC to 264V AC
