ACASA4702E4702P100 Resistor, Array, Precision, 47K Vishay

VISHAYUGS :ACASA4702E4702P100 Code de commande:1549048

Prix:
Prix ​​promotionnel€4,27

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1000 unité)

Documents et téléchargements

description

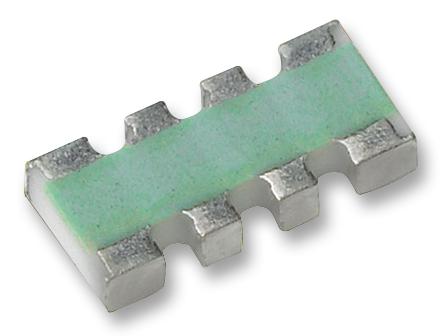

VISHAY - ACASA4702E4702P100 - Resistor Network, 47 kohm, ACAS, 47 kohm, 4 Elements, Isolated, 0612 [1632 Metric]

  • Resistance: 47kohm
  • Product Range: ACAS Series
  • No. of Elements: 4Elements
  • Network Circuit Type: Isolated
  • Resistor Case Style: 0612 [1632 Metric]
  • No. of Pins: 8Pins
  • Voltage Rating: 75V
  • Power Rating per Element: 125mW
  • Resistance Tolerance: ± 0.25%
  • Temperature Coefficient: ± 25ppm/K
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jun-2015)
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Power Rating: 300mW
  • Resistance R1: 47kohm
  • Resistor Element Material: Thin Film
  • Resistor Mounting: Surface Mount Device
