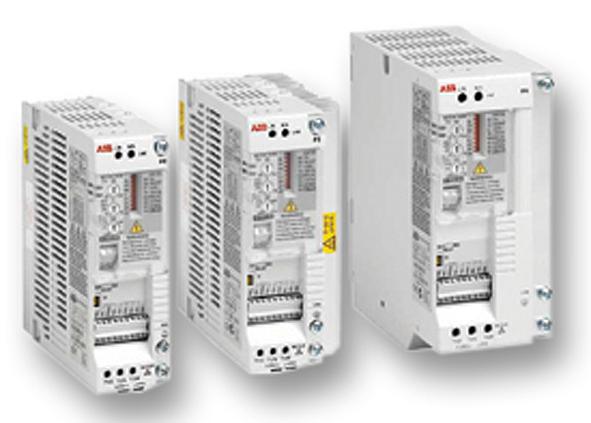

ABB - ACS55-01E-04A3-2 - Driver, Component, ACS55 Series, Single Phase, 750 W, 10.8 A, 200 Vac to 240 Vac
- Supply Voltage Min: 200VAC
- Supply Voltage Max: 240VAC
- No. of Phases: Single Phase
- Power Rating: 750W
- Current Rating: 10.8A
- Product Range: ACS55 Micro Drive
- Approval Bodies: CE, C-Tick, cUL, GOST-R, UL
- External Depth: 128mm
- External Length / Height: 170mm
- External Width: 67.5mm
- Height: 170mm
- IP / NEMA Rating: IP20
- Input Current: 10.8A
- Operating Temperature Max: 40°C
- Operating Temperature Min: -20°C
- Operating Temperature Range: -20°C to +40°C
- Output Current Max: 6.5A
- Output Type: 3 Phase
- Output Voltage Max: 240VAC
- Output Voltage Min: 200VAC
- Response Time: 60ms
- Supply Voltage Range: 200V AC to 240V AC
