AKE 2.5 Terminal Block, DIN Rail, 2Pos, 12AWG Weidmuller

WEIDMULLERUGS :AKE 2.5 Code de commande:1131900

Prix:
Prix ​​promotionnel€12,09

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (113 unité)

Documents et téléchargements

description

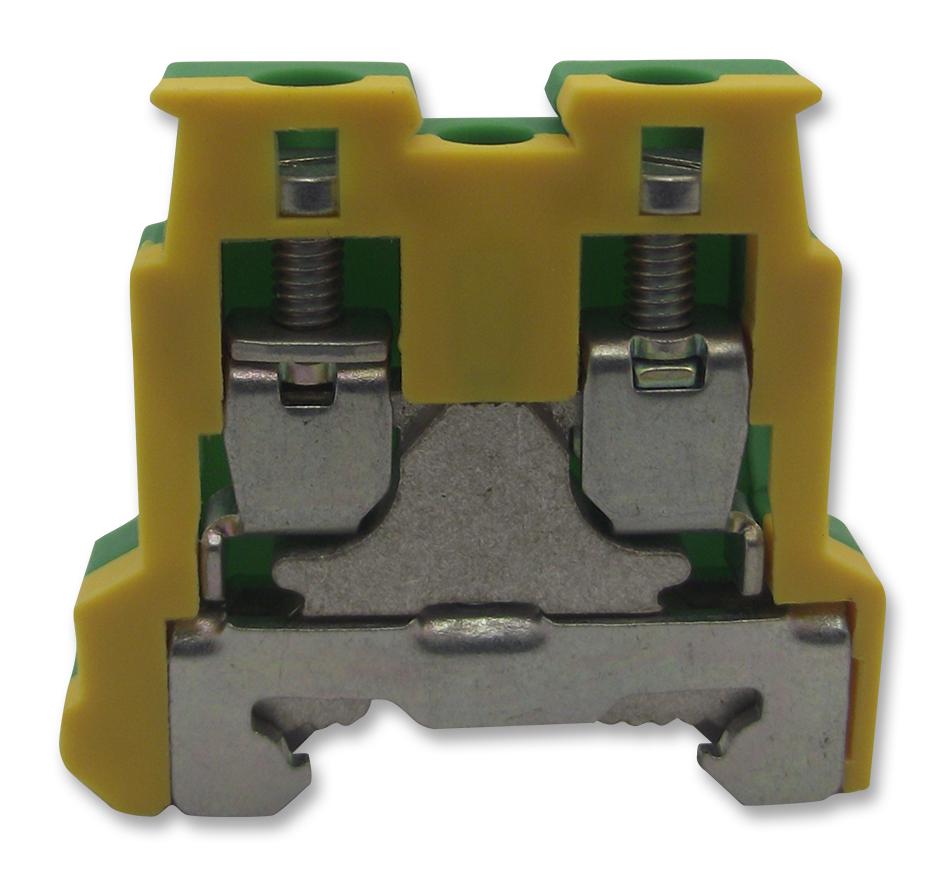

WEIDMULLER - AKE 2.5 - DIN Rail Mount Terminal Block, 2 Ways, 22 AWG, 12 AWG, 2.5 mm², Screw

  • No. of Positions: 2Ways
  • Wire Size AWG Min: 22AWG
  • Wire Size AWG Max: 12AWG
  • Conductor Area CSA: 4mm²
  • Wire Connection Method: Screw
  • Rated Current: -
  • Rated Voltage: -
  • No. of Levels: 1
  • Product Range: Weidmuller AKZ Series
  • SVHC: No SVHC (15-Jan-2018)
  • Colour: Green / Yellow
  • Connector Mounting: DIN Rail Mount
  • Connector Type: Terminal Block, DIN Rail
  • External Depth: 28mm
  • External Length / Height: 27mm
  • External Width: 7mm
  • Height: 27mm
  • Outer Insulation Strip Length: 7mm
  • Pitch Spacing: 5mm
  • Voltage Rating VAC: 250V
  • Wire Area Size Max: 4mm²
  • Wire Area Size Min: 0.13mm²
