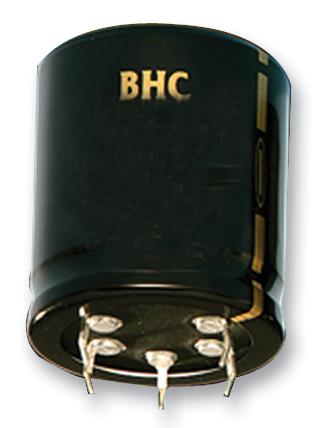

KEMET - ALC10A221DC450 - Electrolytic Capacitor, Long Life, 220 µF, 450 V, ± 20%, Snap-In, 18000 hours @ 85°C
- Capacitance: 220µF
- Voltage Rating: 450V
- Product Range: ALC10 Series
- Lifetime @ Temperature: 18000 hours @ 85°C
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Quick Connect, Snap-In
- Diameter: 35mm
- Lead Spacing: 10mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Height: 35mm
- ESR: 559ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- AC Ripple Current @ 10kHz: 2.89A
- Capacitance Tolerance ±: ± 20%
- External Length / Height: 35mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Ripple Current AC: 1.56mA
