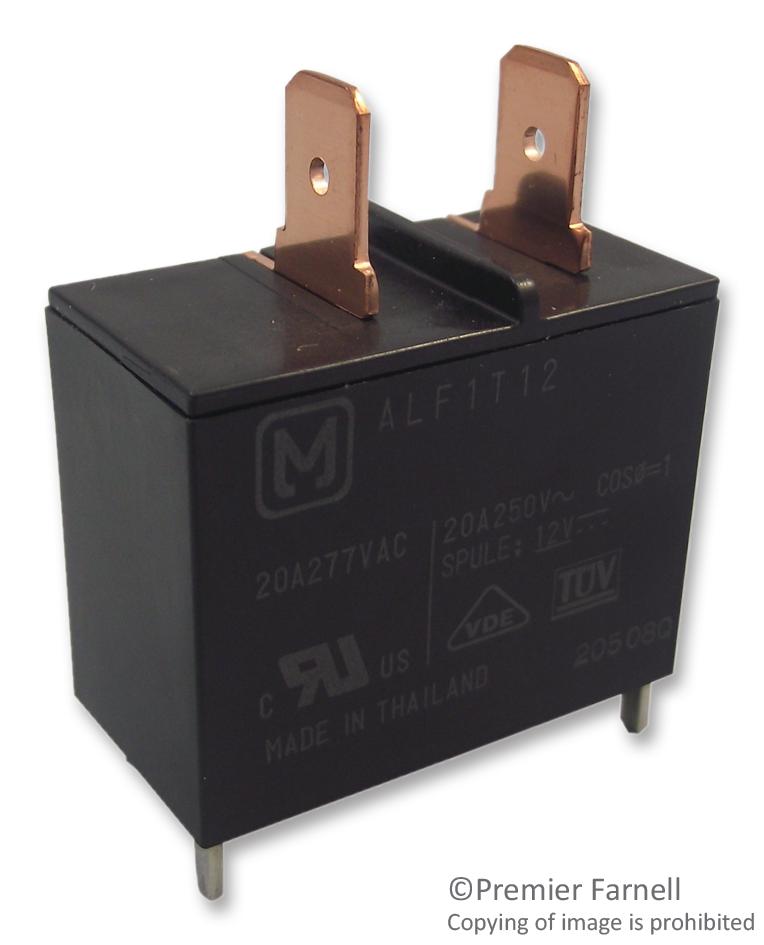

ALF1T12 Relay, SPST-NO, 277VAC, 25A Panasonic

PANASONICUGS :ALF1T12 Code de commande:2095642

Prix:
Prix ​​promotionnel€4,97

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (150 unité)

Documents et téléchargements

description

PANASONIC - ALF1T12 - General Purpose Relay, LF(ALF) Series, Power, Non Latching, SPST-NO, 12 VDC, 25 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 12VDC
  • Contact Current: 25A
  • Product Range: LF(ALF) Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 277VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 160ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Coil Current: 75mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 25A
  • Contact Voltage AC Nom: 250V
  • External Depth: 30.1mm
  • External Height: 23.3mm
  • External Width: 15.7mm
  • Nom Operating Power: 900mW
  • Relay Type: Power
