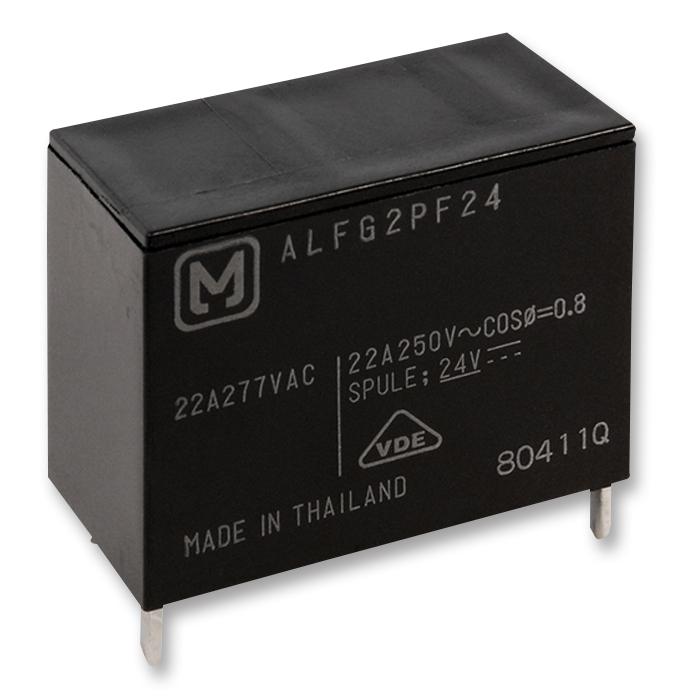

ALFG2PF24 Relay, SPST-NO, 277VAC, 31A Panasonic

PANASONICUGS :ALFG2PF24 Code de commande:1861598

Prix:
Prix ​​promotionnel€14,14

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (41 unité)

Documents et téléchargements

description

PANASONIC - ALFG2PF24 - General Purpose Relay, LF-G(ALFG) Series, Power, Non Latching, SPST-NO, 24 VDC

  • Contact Configuration: SPST-NO
  • Coil Voltage: 24VDC
  • Contact Current: 31A
  • Product Range: LF-G(ALFG) Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 277VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 410ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Approvals & Standards: UL, VDE
  • Coil Current: 59mA
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 31A
  • Contact Current Max: 22A
  • Contact Voltage AC Nom: 250V
  • External Depth: 15.7mm
  • External Height: 23.3mm
  • External Length / Height: 23.3mm
  • External Width: 30.1mm
  • Nom Operating Power: 1.4W
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -40°C
  • Relay Type: Power - General Purpose
