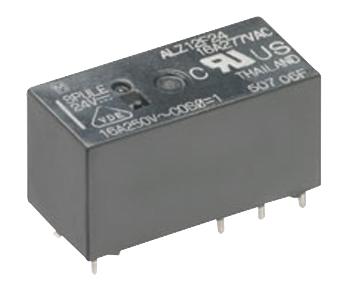

PANASONIC - ALZ12F24T - General Purpose Relay, LZ(ALZ) Series, Power, Non Latching, SPDT, 24 VDC, 16 A
- Contact Configuration: SPDT
- Coil Voltage: 24VDC
- Contact Current: 16A
- Product Range: LZ(ALZ) Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 277VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Tin Oxide
- Coil Resistance: 1.44kohm
- SVHC: No SVHC (07-Jul-2017)
- Coil Current: 16.7mA
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 16A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- External Depth: 28.8mm
- External Height: 15.7mm
- External Width: 12.5mm
- Nom Operating Power: 400mW
- Relay Type: Power
