AMS22S5A1BHBFL334 Sensor, Non-Contact, Single Turn Bourns

BOURNSUGS :AMS22S5A1BHBFL334 Code de commande:2070267

Prix:
Prix ​​promotionnel€99,55

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (34 unité)

Documents et téléchargements

description

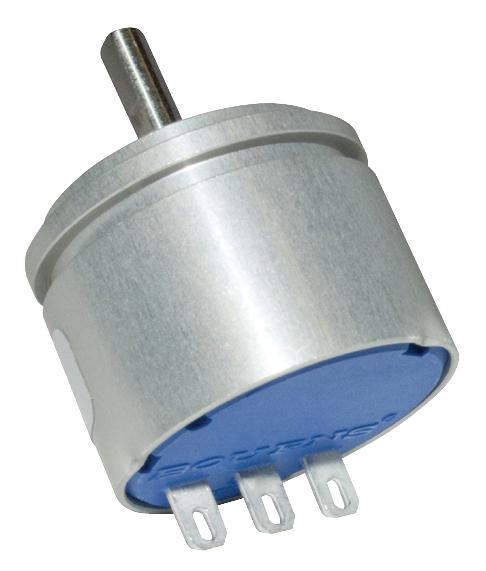

BOURNS - AMS22S5A1BHBFL334 - Position Sensor, 4.5 V to 5.5 V, Cylinder Rotatable, 3 Pins, Flatted

  • Supply Voltage DC Min: 4.5V
  • Supply Voltage DC Max: 5.5V
  • Sensor Housing: Cylinder Rotatable
  • No. of Pins: 3Pins
  • Output Current: 20mA
  • Operating Magnetic Force Min: -
  • Product Range: AMS22S Series
  • SVHC: No SVHC (15-Jan-2018)
  • No. of Channels: 1Channels
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +125°C
  • Rotation Mechanical Angle: 360°
  • Rotational Life Cycles: 50000000
  • Rotational Speed Max: 120rpm
  • Sensor Supply Voltage: 4.5V DC to 5.5V DC
  • Supply Current Max: 20mA
  • Supply Voltage Max: 5.5V
  • Supply Voltage Min: 4.5V
