APE1F Pushbutton Switch, 1POLE Knitter-Switch

KNITTER-SWITCHUGS :APE1F Code de commande:1190434

Prix:
Prix ​​promotionnel€14,35

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (69 unité)

Documents et téléchargements

description

KNITTER-SWITCH - APE1F - Pushbutton Switch, APE, SPDT, On-(On)

  • Switch Operation: On-(On)
  • Contact Configuration: SPDT
  • Contact Voltage AC Nom: 48V
  • Contact Voltage DC Nom: 48V
  • Contact Current Max: 50mA
  • Switch Terminals: Solder
  • Product Range: APE Series
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Plunger
  • Approval Category: UL Recognised
  • Contact Resistance: 50mohm
  • Contact Voltage AC Min: 20mV
  • Contact Voltage DC Min: 20mV
  • External Depth: 9.5mm
  • External Length / Height: 19.3mm
  • External Width: 9.5mm
  • Flammability Rating: UL94V-0
  • Illumination Colour: Non-illuminated
  • Insulation Resistance: 1000Mohm
  • Insulation Resistance Voltage: 250VDC
  • Lead Spacing: 2.54mm
  • Material: PBT
  • No. of Mechanical Operations: 60000
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -20°C
  • Proof Voltage: 500V
  • Pushbutton Switch Type: Standard
  • Switching Current AC Max: 50mA
  • Switching Current AC Min: 1µA
  • Switching Current DC Max: 50mA
  • Switching Current DC Min: 1µA
  • Switching Power Max: 0.4VA

Frais de port prévus

Tu pourrais aussi aimer

ATE1D SWITCH, PCB, SPDT KNITTER-SWITCH
KNITTER-SWITCH ATE1D Switch, Pcb, SPDT Knitter-Switch
Prix ​​promotionnel€13,66
En stock, 68 produits
31-281.0252 SWITCH, 1NO/1NC, MAINTAINED EAO
EAO 31-281.0252 Switch, 1NO/1NC, Maintained Eao
Prix ​​promotionnel€60,42
En stock, 55 produits

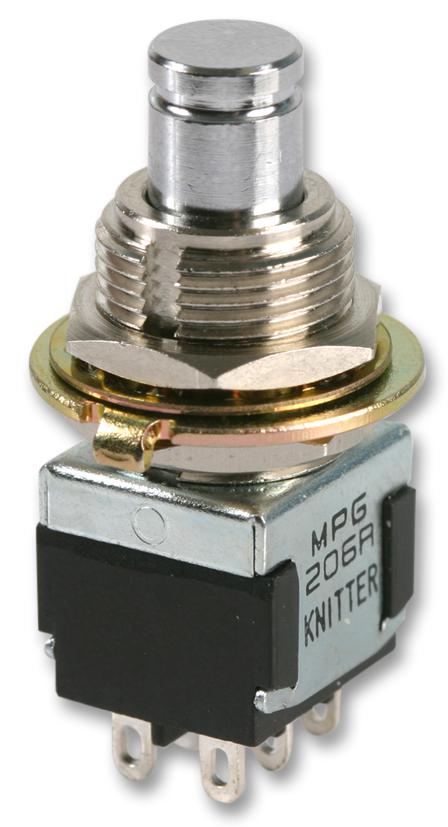

MPG 206 R SWITCH, ON-MOM, DPDT KNITTER-SWITCH
